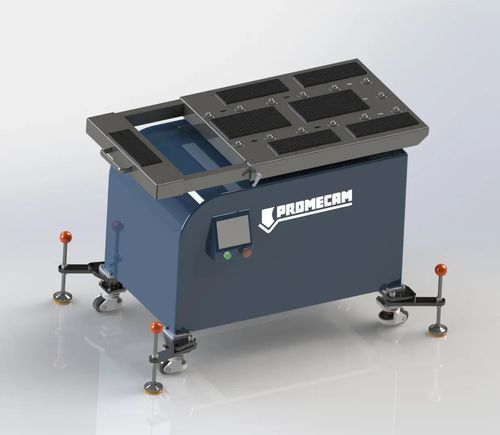

Mobile support table Atlas series

What are they?
Promecam Atlas sheet metal followers are movable worktables that support rotation of the workpiece during the bending phase, reducing handling difficulty for large or thin sheets.

Function and benefits
If not properly supported, large and thin sheets can deform during bending. Followers provide continuous support to prevent counter-bending and reduce the manual effort required from operators. This lowers operator fatigue and the risk of injury, and can reduce the number of personnel needed for handling, improving workshop productivity.

Compatibility
Promecam Atlas mobile followers are compatible with any press brake model regardless of tonnage or length. A single follower can be moved between machines in the same facility with simple operations, enabling flexible use of equipment.

Customization and options
The worktable height can be customized up to 1200 mm. The motorized R-axis (vertical) provides 180 mm of adjustment to fit any die. Optional extras include:

• suction cups
• pneumatic rotary table
• extensions for increased width or length

Rotary table and support surface
The rotary table enables effortless rotation of large sheets. Maximum load capacity is 300 kg to support heavy workpieces. The support surface is covered with scratch-resistant brushes to protect delicate materials such as pre-painted or polished surfaces. Height is adjustable to match die height.

Certifications
Devices are CE certified. Promecam’s sheet metal followers have passed tests related to the Machinery Directive for Low Voltage and Electromagnetic Compatibility. Upon request, Promecam can provide certification for the complete setup to document compliance of the operator/follower system.

Technical Data
Model | Atlas 100 | Atlas 200 | Atlas 300
Table width | 650 mm | 650 mm | 650 mm
Extended table width (optional) | 1700 mm | 1700 mm | 1700 mm
Open/closed table length | 1600 mm/1200 mm | 1600 mm/1200 mm | 1600 mm/1200 mm
Extended table length (optional) | 2200 mm | 2200 mm | 2200 mm
Maximum load at 1 m | 100 kg | 200 kg | 300 kg
Maximum rotation speed | 85 °/s | 40 °/s | 30 °/s
Positioning accuracy | ± 0,25 ° | ± 0,25 ° | ± 0,25 °
Maximum angle of rotation | 75 ° | 75 ° | 60 °
Minimum V-die width | 8 mm | 16 mm | 24 mm
Minimum table height (standard) | 940 mm | 950 mm | 1000 mm
R axis stroke | 180 mm | 180 mm | 180 mm
Overall dimensions | 1250×800×950 mm | 1250×800×950 mm | 1250×800×950 mm
Weight (approx.) | 400 kg | 500 kg | 600 kg
Power | 3,3 kW | 3,3 kW | 3,3 kW
Supply voltage | 230 Vac | 400 Vac | 400 Vac

Characteristics / technical specifications

• Series: Atlas series (Atlas 100, Atlas 200, Atlas 300)
• Table width: 650 mm (all models)
• Extended table width (optional): 1700 mm
• Open/closed table length: 1600 mm / 1200 mm
• Extended table length (optional): 2200 mm
• Maximum load at 1 m: 100 kg (Atlas 100), 200 kg (Atlas 200), 300 kg (Atlas 300)
• Maximum rotation speed: 85 °/s (Atlas 100), 40 °/s (Atlas 200), 30 °/s (Atlas 300)
• Positioning accuracy: ± 0,25 ° (all models)
• Maximum angle of rotation: 75 ° (Atlas 100 & 200), 60 ° (Atlas 300)
• Minimum V-die width: 8 mm / 16 mm / 24 mm (by model)
• Minimum table height (standard): 940 mm / 950 mm / 1000 mm (by model)
• R axis stroke: 180 mm
• Overall dimensions (all models): 1250×800×950 mm
• Weight (approx.): 400 kg / 500 kg / 600 kg (by model)
• Power: 3,3 kW (all models)
• Supply voltage: 230 Vac (Atlas 100), 400 Vac (Atlas 200 & 300)
• Worktable height customizable up to 1200 mm; motorized R-axis vertical adjustment 180 mm
• Optional accessories: suction cups, pneumatic rotary table, extensions for width/length
• Rotary table max load 300 kg; support surface with scratch-resistant brushes
• CE certified; compliance with Machinery Directive tests for Low Voltage and EMC
