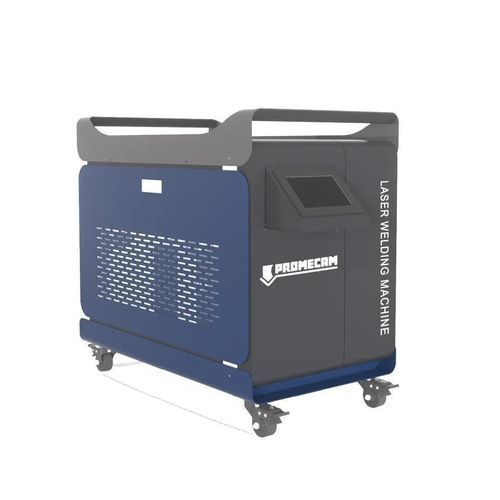

Laser welding machine Vulcanus series

manualsteel sheet metalfor metal

Product overview
Laser welding delivers precise, localised energy input with a reduced heat-affected zone and the ability to join dissimilar metals. The Vulcanus series combines laser welding, laser cleaning (ablation) and manual laser cutting in a single, modular platform. Available configurations include forced-air and liquid cooling, and optional wire-feed units for filler-metal welding, providing flexibility for a range of industrial applications.

Technical Data (summary)
Model | Vulcanus Air | Vulcanus 1000 | Vulcanus 2000 | Vulcanus 3000
Laser power [W] | 1200 | 1000 | 2000 | 3000
Wavelength [nm] | 1064 | 1064 | 1064 | 1064
Cooling | forced air | liquid | liquid | liquid
Wire speed [cm/min] | 40–600 | 40–600 | 40–600 | 40–600
Wire diameter [mm] | 0.8 / 1.0 / 1.2 / 1.6 | 0.8 / 1.0 / 1.2 / 1.6 | 0.8 / 1.0 / 1.2 / 1.6 | 0.8 / 1.0 / 1.2 / 1.6
Power consumption [kW] | 8 | 8 | 13 | 17
Supply voltage [Vac] | 230 | 230 | 230 | 230
Approx. dimensions [mm] | 580×275×680 | 1260×750×1260 | 1260×750×1260 | 1260×750×1260
Approx. weight [kg] | 55 | 250 | 250 | 250

Features and benefits

• Certified safety: CE certification; compatible with safety cabins and perimeter guards. Interlocks, warning lights and emergency release comply with class 4 laser standards.
• Training and certification: Operator training and certification courses available in collaboration with recognised welding institutes.
• Laser cleaning: Ablation mode for removal of dirt, oxides, paint and oil; adjustable beam width and power to preserve the substrate.
• Manual laser cutting: Hand-held cutting torch mode for clean, flexible cuts in sheet metal and other materials.
• Monitoring and connectivity: Energy and production-time monitoring; data collection for operation analysis and interfacing with MES/ERP systems to support Industry 5.0 workflows.

Applications
Laser welding of metals including dissimilar combinations, surface cleaning (oxide/paint/oil removal), manual sheet-metal cutting and any process requiring precise, localised energy input with a reduced heat-affected zone.

Technical characteristics / specifications

• Series name: Vulcanus
• Available power ratings: 1.0 kW, 1.2 kW (Air), 2.0 kW and 3.0 kW (specific models as listed above)
• Wavelength: 1064 nm (all models)
• Cooling: Vulcanus Air = forced air; Vulcanus 1000 / 2000 / 3000 = liquid cooling (machines are liquid-cooled without refrigerant gas cooling units)
• Wire feeding: Optional wire pusher units for filler-metal welding; wire speed 40–600 cm/min; supported diameters 0.8 / 1.0 / 1.2 / 1.6 mm
• Power consumption: Vulcanus Air = 8 kW; Vulcanus 1000 = 8 kW; Vulcanus 2000 = 13 kW; Vulcanus 3000 = 17 kW
• Supply voltage: 230 Vac (all models)
• Approx. dimensions: Vulcanus Air = 580×275×680 mm; Vulcanus 1000 / 2000 / 3000 = 1260×750×1260 mm
• Approx. weight: Vulcanus Air = 55 kg; Vulcanus 1000 / 2000 / 3000 = 250 kg
• Functions: Laser welding, laser cleaning (ablation), manual laser cutting
• Safety features: Class 4 laser safety compliance, interlocks, warning lights, emergency release
• Connectivity / monitoring: Data collection and analysis capabilities for energy consumption and machining time; MES/ERP interfacing for production monitoring
