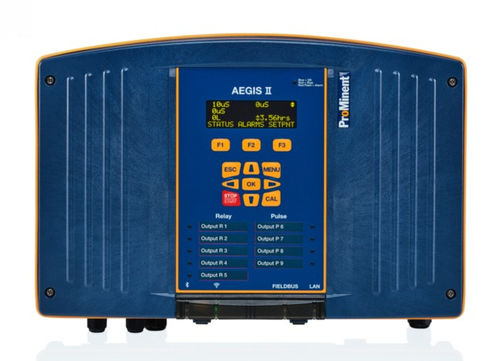

Temperature measuring instrument AEGIS II

concentrationflowpH

Controller AEGIS II continuously measures and controls the conductivity and biocide concentration to keep pipework and heat exchangers clean. Treatment of cooling water in evaporation cooling systems - VDI 2047 and 42-compliant Federal Immission Control Ordinance (BImSchV)-compliant The AEGIS II records all the necessary measuring parameters for cooling water treatment and controls the functions necessary for smooth operation: ■ Measures the electrolytic conductivity – controls bleeding ■ Biocide metering – time-dependent or as measurement and control, VDI 2047 and 42-compliant. Federal Immission Control Ordinance (BImSchV)-compliant (e.g. chlorine) ■ Corrosion measurement – determines whether enough corrosion inhibitor is being metered ■ pH measurement – measures and controls the pH value Your benefits ■ Control of biocide metering over 1, 7 or 28 days, real-time clock ■ If desired, the biocide concentration can be measured and controlled online ■ Measurement of conductivity, temperature and flow control with the CTFS type digital sensor ■ Serial web interface for unit configuration and remote maintenance with e-mail alarms (the controller must be connected to the Internet for e-mail alarms). WiFi as an option ■ Forced bleeding: performs bleeding before biocide metering, based on time or measured values ■ Bleed lock: blocks bleeding after biocide metering has taken place
