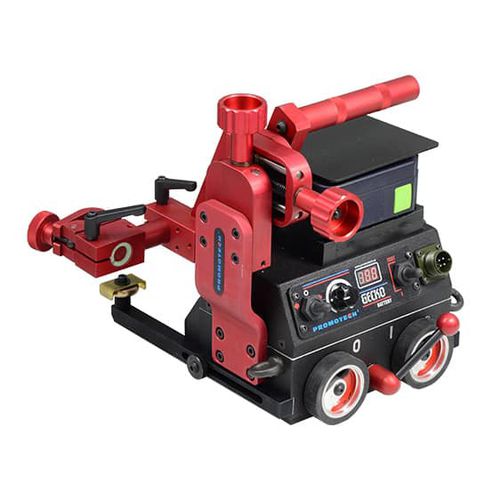

Arc welding carriage Gecko Battery

automaticportablecontinuous

Gecko Battery is a portable, battery-powered welder designed to produce consistent high-quality welds. Constant and repeatable travel speed enables weld bead geometry that is exact to the required specifications. It can also be plugged directly into power network using an optional power supply. Primary features and benefits: Compact, lightweight design with durable aluminum cast housing Convenient 18 V DC battery supply Optional power supply 110-240 V AC 50/60 Hz Strong magnetic traction permits out of position use Magnet on/off lever permits easy set up and adjustment on work piece Maintenance free 4-wheel drive with worm gear reduction Heat resistant silicone wheels Quick clamping torch holder mechanism for different types of MIG/MAG torches with diameters of 16-22 mm (5/8”-7/8”); optionally up to 35 mm (1-3/8”) Precise torch adjustment with screw drive cross slide Multifunctional LED display – presetting of travel speed, units, error codes information Closed loop speed control system stabilizes travel speed to reduce weld defects and costly rework Consistent heat input reduces distortion Reduced wasted filler metal – eliminates over welding Automatic arc on/off system initiates welding with travel, simultaneously Capable of carrying and controlling two torches Self-guiding roller arms eliminate the need for track Multi-surface guiding with user-friendly adjustment of tractor position Improves working environment – removes operator from heat and fumes Gecko applications Welding applications Trailer manufacturing Truck tanks Oil tanks Water storage tanks Transformers Shipyards Any application demanding a long, continuous fillet weld
