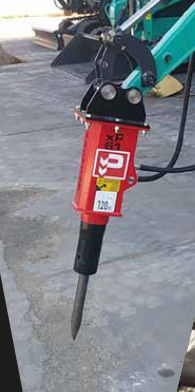

Hydraulic rock breaker xP 61

for excavators

Product Description The XP 61 demolition hammer by Promove Demolition is designed for compact excavators and offers high performance in light demolition applications. With its robust structure and advanced technologies, it ensures efficiency, safety, and durability over time.

Main Features

• Upper shock absorber: No damage to the excavator arm
• Low-pressure nitrogen chamber: Increased impact energy
• Increased power: Larger diameter striking mass and tools for better resistance and productivity
• Lower shock absorber: Lower casing protection
• High-strength tools: With special treatments
• SMART VALVE (optional for the light range): Eliminates installation time and offers overflow protection

Technical Specifications
Equipment weight: 60 Kg
Excavator weight min/max: 0.6/1.6 ton
Height with standard tool: 837 mm
Tool diameter: 38 mm
Usable length of standard tool: 240 mm
Oil flow min/max: 10/15 l/min
Operating pressure min/max: 100/110 bar
Blows per minute: 633/950 1/min
Energy per blow: 174 joules

Features / Technical Specifications

• Hammer weight: 60 Kg
• Carrier machine weight min/max: 0.6/1.6 ton
• Tool diameter: 38 mm
• Energy per blow: 174 joules
• Height with standard tool: 837 mm
• Usable length of standard tool: 240 mm
• Oil flow min/max: 10/15 l/min
• Operating pressure min/max: 100/110 bar
• Blows per minute: 633/950 1/min
