Overhead tank RAM

storagediesel storagehydrocarbon storage

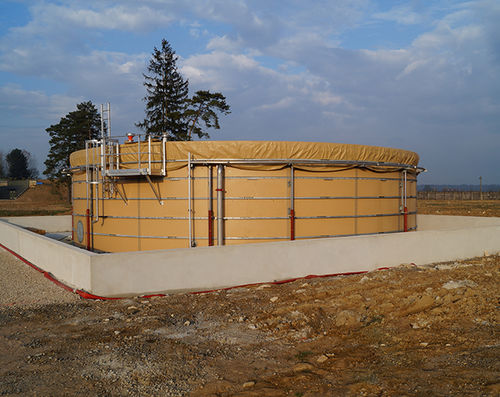

Our Bolted Fuel Tanks RAM are cylindrical fixed-roof tanks for storing fuels (diesel, jet fuel, …) in your depot. RAMs are a form of hybrid tank combining the advantages of conventional rigid steel tanks with those of flexible tanks: •Easily transported to remote areas where access is difficult, •Can be quickly installed or dismantled, •The liner is compatible with the majority of fuels, •Modular accessories are available. RAM tanks comprise: •A metal structure composed of bolted steel plates, •A panel roof, beams, and a completely tight PVC liner, •A hot vulcanized internal storage liner in elastomer reinforced coating fabrics, •Accessories for: unloading/loading, level measurement, sampling, and fire protection. A bolted tank of 500 m3 is stored in two ISO 20 ‘containers. This hydrocarbon storage solution can be installed by a team of 5 people in less than 6 days. ADVANTAGES Reliability •External steel structure •High chemical compatibility of liner •Precise monitoring of fuel level (standard) Safety •Fire rings •Flames and blow-hole off •Water drain Handling •Easily and rapidly assembled •Stored in two ISO 20′ containers •Different modes of transport possible DETAILED INFORMATION •Material: External steel structure – Rubber-coated liner •Technique: hot vulcanization in a vacuum autoclave •Accessories: o1 level gauge o1 water drain o1 sampling system ofire rings o1 flame and blow-hole off o1 inlet/outlet for filling and emptying o1 manhole o1 overflow o1 footbridge.
