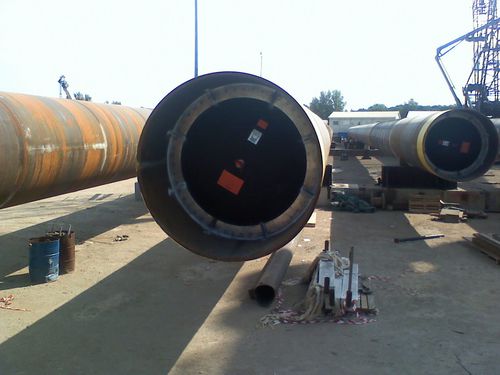

Rip out diaphragm for offshore applications

The rubber Rip-out diaphragms, equipped with a cruciform piercing tool, provide different functions: •buoyancy assistance for large platforms equipped with metal floatation tanks, •corrosion protection for electrical outlet cables. Our teams can travel on-site to install your offshore buoyancy kits no matter where you are located! A complete removable of all rubber parts version is also available. ADVANTAGES Reliability •Tightness testing can be implemented before installation •Penetration and rip-diameter testing can also be performed •Simulation and calculation of the force required to puncture the diaphragm Safety •Air and water tight •Suitable for applications at depth •Ease of installation Handling •Locking fixation system •Insert integrated into the rubber •Selection of suitable materials DETAILED INFORMATION •Material: Synthetic Rubber •Technique: hot vulcanization in a vacuum autoclave •Dimensions: min. 6″ (152.4 mm) / 118″ (max. 2997.2 mm) •Form: cylindrical •Temperature resistance: +0 / +60°C •Max. thickness: defined by the clients’ specifications •Grade of steel: defined by the clients’ specifications
