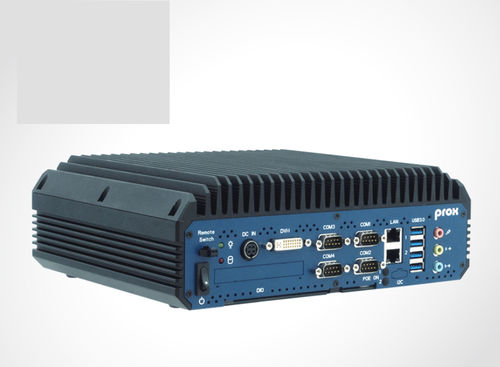

Embedded PC SE-8400

desktop6th generation Intel® Core™Intel® Core™ i7-6700TE

Intel ® 7th / 6th Gen. Core™ Fanless and High Performance Embedded PC ● Intel® 7th / 6th Gen. Core™ i7 / i5 / i3 / Pentium® / Celeron ® desktop processor (LGA1151) ● 2 x DDR4 2133MHz SO-DIMM memory up to 32GB ● 2 x 2.5" SATA III HDD/SSD with RAID 0/1 (Q170) ● 2 x Mini PCIe slots ● 2 x GbE LAN, PoE as option ● DVI-I & HDMI® for display ● 6 x USB 3.0 (in Q170 ) ● 1 x 8 in / 8 out DIO ● 6 x COM ports (2 ports for optional) ● Wide-ranged voltage DC In 9~36V ● Optional 1 x PCIe x4 expansion slot or 2 x PCI expansion slots (Q170) System SE-8400 CPU Support Core™ i7-6700TE, Quad Core, 2.4GHz, 8M cache Core™ i5-6500TE, Quad Core, 2.3GHz, 6M cache Core™ i3-6100TE, Quad Core, 2.7GHz, 4M cache Pentium ® G4400TE, Dual Core, 2.4GHz, 3M cache Celeron ® G3900TE, Dual Core, 2.3GHz, 2M cache Chipset Intel ® Q170/ H110 Memory Support 2 x DDR4 2133MHz SO-DIMM up to 32GB Watchdog 1~255 seconds watchdog timer selectable Drive Bay 2 x 2.5" SATAIII HDD/SSD (support RAID 0/1 in Q170 SKU only) Audio 1 x Line In / 1 x Line Out / 1 x Mic In Expansion Slots 1 x full-sized Mini PCIe (Mini PCIe, USB and SIM signal) 1 x half-sized Mini PCIe (Mini PCIe and USB signal) 1 x SIM card slot 1 x CFast slot System Weight 4.9 kg Operating System Windows 10 IoT LTSB 2016 / Windows 8.1 (64bit) / Windows 7 (64bit) / Linux Ubuntu 14.04 (64bit) Dimensions 260 x 80 x 200 mm (W x H x D) Power Input DC In 9~36V Certifications FCC / CE I/O Ports (Front side) Display 1 x HDMI ® USB 2 x USB 3.0 (Q170), 2 x USB 2.0 (H110) Serial Ports COM 5/6 for RS232 (optional) Parallel Port 1 x LPT port (optional) SIM Card 1 x SIM slot CFast Slot 1 x CFast slot Antenna 3 x antenna hole
