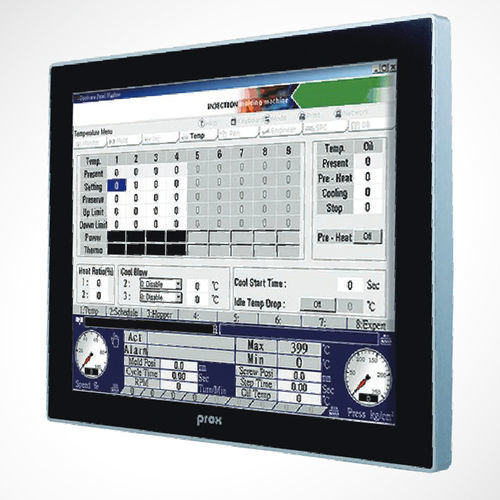

TFT LCD panel PC SG-G151

PCAP capacitive touch screenLED backlight5-wire resistive touch screen

Intel ® Atom® x7-E3950 / Celeron ® J3455 Processor Fanless and All-around IP66 15" Panel PC ● Intel® Celeron ® J3455 / Atom ® x7-E3950 processor on board ● Fanless and quiet design ● All-around IP66 mechanical design ● Stand installation ● HDD easy maintenance design ● M12 waterproof connector System CPU Type Intel® Atom® x7-E3950 processor Intel ® Celeron ® J3455 processor Chipset Intel® SoC Memory Support 1 x DDR3L 1600/1867MHz SO-DIMM socket (up to 8 G) (non-ECC) Front Bezel Aluminum IP66 Yes (all-around) Power Input DC In 12 V/24 V Watchdog 1~255 second w atchdog timer selectable Operating System Windows 10 IoT LTSB 2019/Ubuntu 16.04 Dimensions 365 x 279.46 x 99.16 mm (W x H x D) System Weight 7.2 kg Mounting Support Wall mount/VESA 100/Stand Certifications FCC/CE I/O Ports Power Input 1 x M12 waterproof connector, supporting 12 V/24 V DC USB 2 x USB 2.0 with M12 waterproof connector (4 x USB 2.0 ports via specific cable) Serial Port 1 x COM port with M12 waterproof connector COM 1 for RS-232/422/485 LAN 2 x GbE LANs with M12 waterproof connector LAN 1&2: Intel® I210AT Storage 1 x 2.5" SATA III HDD or SSD Expansion Slot 1 x full-sized Mini PCIe slot (Mini PCIe and USB signal)
