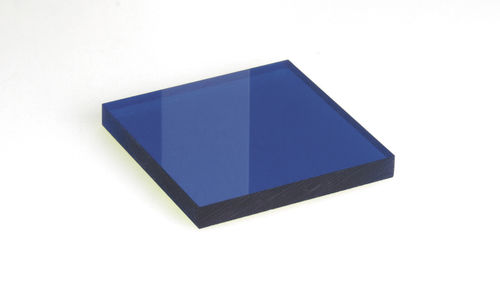

Nd:YAG laser window 100-K0221-210x297

The 0221 laser protection filter is particularly suitable as laser protection for powerful Excimer (193 nm), UV (248 nm), harmonische Nd:YAG (266 + 355 + 532nm), Dye (577 nm), Dye (585 nm), Dye (595 nm) and He:Ne (633 nm) lasers. However, other lasers are also covered by the filter. The laser safety filter is made of a special blue plastic and has a daylight transmission of approx. 2,9% with a low thickness. The laser safety filter is qualified according to the regulations of EN 12254. • dimensions 210 x 297 mm • also available in the standard size 100 x 200 mm and maximal size 610 x 915 mm • other customized sizes available on request • suitable window frames available on request Qualified protection levels according to EN 12254 Wavelengths - Protection levels 180-315 - D AB7 + IR AB2 (OD10+) >315-364 - DIR AB5 (OD8+) >364-370 - DIR AB4 (OD4+) >370-378 - DIR AB2 (OD2+) >378-390 - DIR AB1 (OD1+) >520-540 - DIR AB1 (OD1+) >540-565 - DIR AB2 (OD2+) >565-575 - DIR AB3 (OD3+) >575-643 - DIR AB4 (OD4+) >643-650 - DIR AB3 (OD3+) >650-657 - DIR AB2 (OD2+) >657-670 - DIR AB1 (OD1+) PF CE
