Rectangular protective bellows

PVCcoated fabricKevlar® fabric

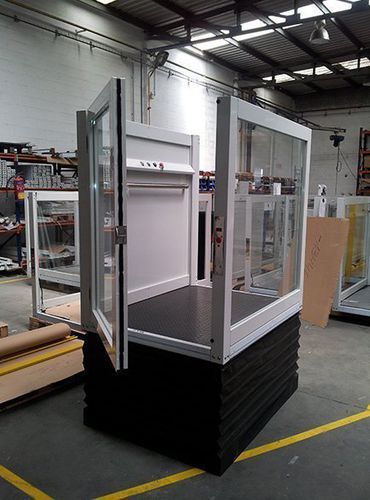

Proteval lift table bellows are made to measure and are compatible with all types of lift tables and platforms. They are used to protect the inner mechanisms of the lifting platform or table from any external element (dust, chips, welding, glass …) and to protect the worker from possible scissors trapping. They can be manufactured completely closed or open longitudinally with Velcro, for quick and easy assembly. 1.- Fixation frames 2.- High-frequency union 3.-Fabric 4.-Inner reinforcement Manufactured according to the customer’s drawings and indications or based on solutions developed by our technical office for each situation. Non-deformable and waterproof bellows. Cover material according to the need for protection, PVC, aramid, polyurethane, etc. Interior reinforcements on all folds. In some cases with opening limiting straps. Fixing metal terminals with or without holes, velcro,…. They can be open, with velcro/adhesive to facilitate assembly. Vertical working position.
