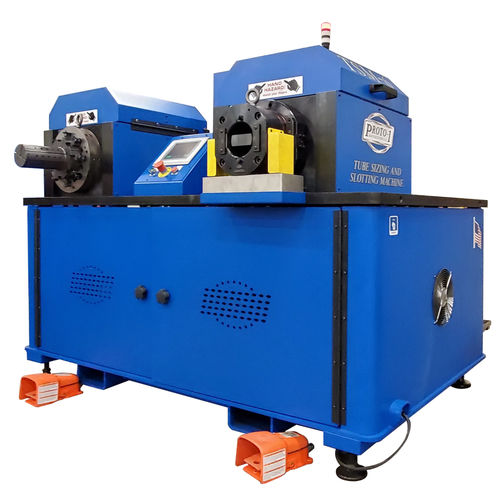

Tube forming machine TSM-6.0

metalCNC

The TSM-6.0 is a segmented sizing machine for tube and pipe from 3.0"- 6.0" diameter. Proto-1's TSM-6.0 End Form Applications: tube reducing, slotting, notching, punching, and tube expansion Specifications Tube Diameter: 3.0" - 6.0" Tube Wall: 0.020" - 0.083" Tube Slotting: 3.0" - 6.0" Cycle Time: 8 - 30 seconds depending on end form and material type Expand/Reduction Range: Reduce: 0.25" on diameter | Expand: 1.00" on diameter Wedge Hydraulic Cylinder: 8" bore and 6" stroke Dimensions: 78.0" length x 71.3" width x 67.0" height Standard Features Warranty: One year from date of delivery Voltage: Standard (480v/60hz/3phase) Controls: Allen PLC Operational Screen: Allen Bradley HMI Touchscreen Oil Tank: 20 gallons Hydraulic Oil Cooling: Fan air cooled system Paint Color: Proto-1 blue Cycle Start: Foot Petal FAST Technology Safety Features RFID switch on hood(s) Electrical lockout point E-Stop on control panel Optional Hydraulic servo positioning for wedge cylinder UL or CUL certifications can be added for additional cost Other power options are available and can be quoted Custom control available upon request and can be quoted Custom designed fixtures for tubing Water cooling available upon request Custom safety features available upon request Custom paint available upon request
