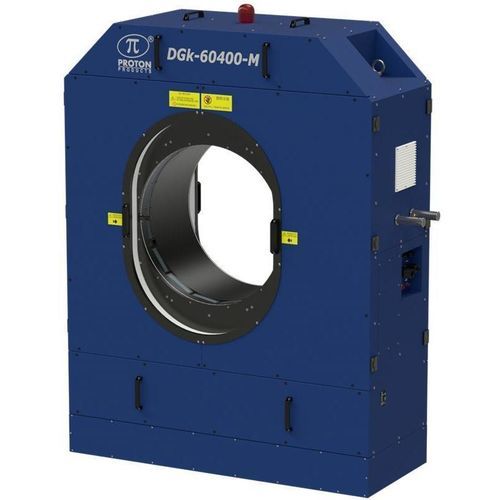

Diameter measuring device InteliSENS DGk60400-i4

Six Axis Diameter Gauge The DGk60400-i4-M is a 6-axis rotating system that measures the outer diameter over 360 degrees, and generates a visual of the diameter and roundness of the steel bar or pipe. In harsh production environments, both hot and cold, the system provides product quality supervision, full quality reporting, and alarm functions, and helps ensure you manufacture a high-quality product. For setup and adjustment, connect from your PC to the DGk60400 via OPC UA or Ethernet. The InteliSENS DGk60400-i4-M Diameter Measurement System can be integrated to your PLC. Connect to your PLC using PROFINET, PROFIBUS, or Ethernet Industrial Protocol (EtherNet/IP). The DGk60400-M measures the product and displays and reports measurement and quality data. Automatic height adjustment Integrated speed and length device Designed for harsh environments Full integration into a PLC or operate as a stand-alone device Optional control cabinet Optional rail system to slide the system out of the line Optional speed and length, with an integrated SLRM gauge
