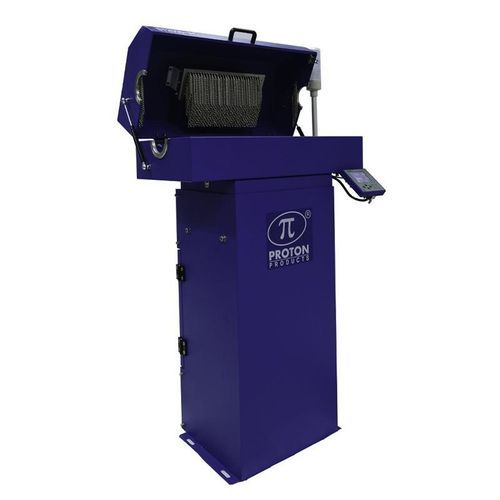

Spark tester InteliSENS® ST-AC series

insulationsafetyvoltage

Proton Products InteliSENS® ST-AC series mains frequency spark testers meet the international standards stipulated for wire insulation testing UL1581, UL2556 and EC62230. The Proton Products mains frequency AC Spark Testers are designed for in-line testing of cables to detect pinhole and bare patch insulation faults. They accommodate cables up to 130 mm in diameter and outputs an AC frequency, user-adjustable EHT test voltage of up to 25 kV AC (rms). Typical applications are for the insulation testing of power and automotive cables. This unit offers a broad selection of built-in and optional industry-standard communications interfaces for connection to production controllers. The InteliSENS® ST-AC Series electronics are housed in a rugged IP54 sealed stainless steel case, ensuring reliability and long operational life. 130mm maximum cable diameter 300mm long bead chain electrode 25kV maximum test voltage Distinguishes and separately counts pinhole and bare patch flaws Mains test frequency UL1581, UL2556 and EN62230-compliant testing Ozone extraction port Connectivity Safety interlock input to enable the EHT test output voltage 50 V maximum pulses, 250 kHz maximum frequency, user scalable Maximum Input Voltage: 24Vdc Fixed function: Reset length, fault counts and positions
