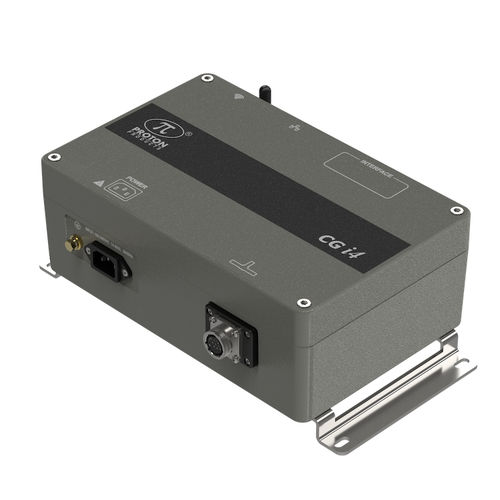

Capacitance measuring instrument InteliSENS® CG

capacitiveprocessfor extrusion lines

Proton Products InteliSENS® CG series capacitance gauges are designed for the continuous measurement of cable insulation capacitance on insulation extrusion lines, enabling manufacturers to control the capacitive characteristics of their cable insulation. Capacitance gauge heads are available to accommodate different cable diameters and are designed to be immersed in the post-extrusion water cooling trough. For applications which do not use a water trough, high-pressure water may be injected into the capacitance gauge head to jacket the cable in water; ceramic lined end-caps are available for sealing smaller diameter cables. Features For insulation capacitance measurement during the manufacture of telecommunications and RF coaxial cables. Capacitance gauge heads are available to accommodate different cable diameters. Designed to be immersed in the post-extrusion water cooling trough or injected with high-pressure water (ceramic lined end-caps are available for sealing smaller diameter cables). High accuracy, drift-free capacitance measurement from low to high line speeds with zero correction function. Unaffected by water temperature, and compensates for water resistivity and pH. Rapid installation and maintenance free. Range of interfaces available for connection to PLCs and computers. Integrates seamlessly via CANbus with a Proton Products NEXiS® CS2G-CAP Controller for capacitance driven control of the insulation extrusion process.
