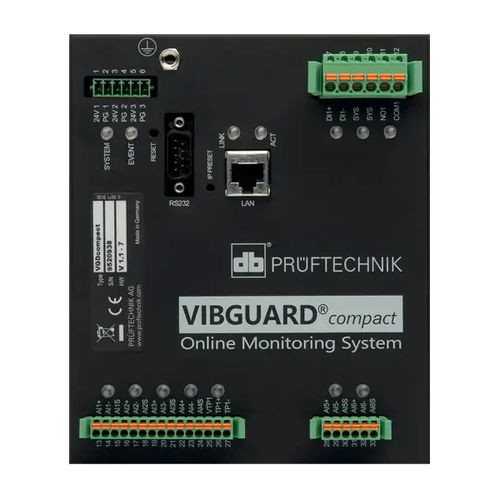

Vibration monitoring system VIBGUARD compact

conditiondiagnosticfor pumps

Condition Monitoring of highly dynamic critical assets • Ideal for extruders, centrifuges, turbocompressors, vacuum pumps, and more • Smart and easy IIoT solution for predictive maintenance • Wi-Fi hub available • Characteristic value trend storage with adjustable data reduction and Intelligent Event Recording • Access to free browser-based OMNITREND Asset View software • Individual installation solutions including IP65 housing • Free software updates VIBGUARD compact for individual assets VIBGUARD compact offers six measuring channels for continuous monitoring. It is perfectly suited for fast and highly dynamic equipment. In particular, the VIBGUARD compact meets the requirements of critical assets that are characterized by high availability, high aggregate values, complex drives and changing operating conditions. Whether pre-installed in an IP65 compact housing or as a switch cabinet system module, the VIBGUARD compact is perfect for diagnostic condition monitoring of individual extruders, large fans, multiphase or vacuum pumps, turbocompressors, mill stands, or centrifuges. All six measuring channels are designed as highly dynamic analog input channels and can be equipped with either standard ICP vibration sensors or with voltage input signals for process variables. They provide in depth diagnostic data such as time signals or envelope signals, and up to 6 characteristic values such as vibration characteristic or bearing condition. The 'Intelligent Event Recorder' stores relevant results, fully automatically and continuously, providing the basis for comprehensive machine diagnostics.
