Dot peen marking machine InDot Integrated Dot Peen Series

metalaluminumfor integration

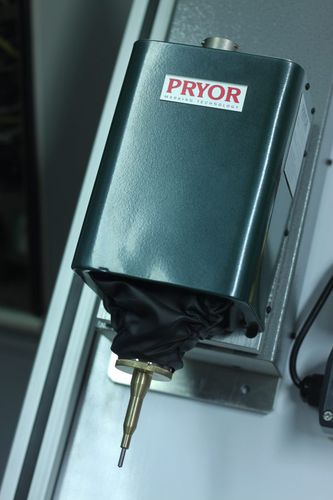

The Pryor InDot range of dot-peen marking machines provide a sequence of impact dot marks that create a human or machine readable inscriptions such as identification codes, logos and 2D Data Matrix barcodes. This range of machines is compact and designed to be integrated into either an existing production line, or integrated into a turnkey bespoke installation. Very easy to integrate into existing production lines Compact design - ideal for when workshop space is scarce Absolute precision ensured by lead screw mechanism Variable force control to ensure optimum output depth on various materials Consistent marking depth Ideal for high volume production rates Often used in the aerospace industry due to unbeatable dot matrix dot accuracy Standard Character Sizes: 0.15mm - 99.9mm in increments of 0.15mm Standard Marking Formats: 5 x 7, 7 x 9, Varidot, HPGL, BMP Logos Electrical Supply: 220v/110v Electromagnetic Solenoid with programmable depth settings. Capable of marking all engineering materials up to 62HRc (800Hv) Marking Window: 50mm x 25mm. Dimensions: 226mm (H) x 133mm (W) x 92mm (D) Marking Window: 130mm x 30mm. Dimensions: 225mm (H) x 220mm (W) x 122mm (D) Marking Window: 60mm x 60mm. Dimensions: 351mm (H) x 237mm (W) x 244mm (D) Marking Window: 150mm x 150mm. Dimensions: 344mm (H) x 359mm (W) x 359mm (D) Marking Window: 300mm x 150mm. Dimensions: 326mm (H) x 515mm (W) x 300mm (D) Others available on request.
