Compression limiter

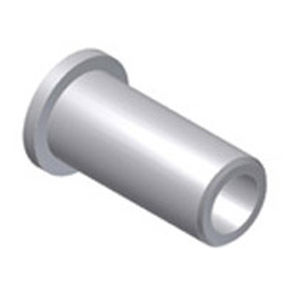

Headed Tube Compression Limiters offer the benefits of the solid tube compression limiters plus the addition of a head. The head can spread the induced load over a greater area, thus reducing the stress and preventing the compression limiter from indenting the mating surface. Headed parts are commonly used when the mating part is made of a soft material such as aluminium. The head can also be placed at the bolt face if a greater contact area is required. - Advantages : • Prevents damage to host component • Helps to prevent creep and retention of compressive force within joint • A variety of designs available to suit application requirement • Designs available to suit all installation methods • Clearance holes also can be used as a datum feature • Oval hole designs available • A close length tolerance range available • Custom designs available • A knurled range available for increased retention • Can be supplied as a compression limiter plus bolt assembly
