IBC container agitator 10020
dynamicverticalbatch

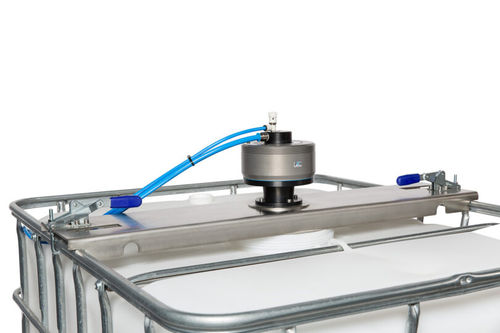

IBC container agitator - 10020 - PTM mechatronics GmbH - dynamic / vertical / batch

IBC container agitator - 10020 - PTM mechatronics GmbH - dynamic / vertical / batch - image - 2

Add to favorites

Compare this product

Characteristics

Technology

dynamic

Configuration

vertical

Batch/continuous

batch

Product type

for liquids

Applications

for IBC containers

Other characteristics

stainless steel, ATEX

Capacity

Max.: 1,200 l
(317.01 gal)

Min.: 600 l
(158.5 gal)

Empty weight

19.8 kg
(43.7 lb)

Description

ATEX Zone 1+2+21+22 Speed 0-300 1/min Adjustable via needle valve Torque 32Nm Traverse V4A stainless steel 1.4404 For 600-1200 liter IBCs Adjustable quick releases Incl. foldable cup stirring element For container openings > 150mm LABS oil and silicone free Powerful IBC agitator fully equipped with agitator shaft, agitator element and crossbar, certified for ATEX Zone 1 Our powerful, pneumatic agitators for IBCs & containers can be easily attached to your container using the crossbar made of high-quality V4A stainless steel 1.4404. The agitator is fixed in seconds with two quick-release clamps. The traverse is suitable for 600 to 1200 liter IBCs thanks to the large adjustment range. The agitator is delivered ready for use with a matching agitator shaft and a coordinated eco-Cup folding cup agitator (both made of V4A stainless steel 1.4404).
