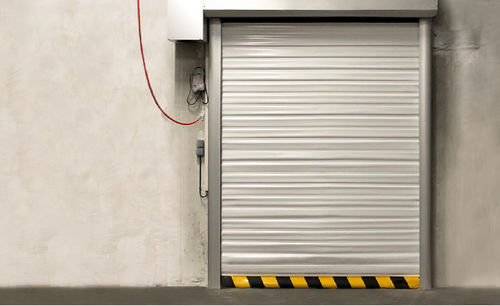

Industrial roller shutter

automaticaluminumindoor

Product description
The high-speed roll-up door for cold-storage chambers down to -30 °C is engineered to compartmentalise refrigerated or freezing areas with temperature differentials up to 25 °C and ambient humidity up to 30%. The curtain is a 3-layer construction (2 PVC layers + 1 foam layer). Heated guides and a motor with integrated heating resistors reduce frost buildup and ensure reliable operation in low-temperature environments.

Applications

• Food industry cold rooms
• Logistics and distribution warehouses
• Pharmaceutical storage and controlled environments

Main features

• 3-layer curtain: 2 PVC layers + 1 foam layer to limit thermal transfer
• Curtain temperature range: -35 °C to +70 °C
• Maximum recommended dimensions: 3600 x 4000 mm
• Designed for indoor installation in cold-storage/freezing chambers (temperature differentials up to 25 °C)
• Anodised aluminium frame with heated guides to minimise ice formation
• Motor with heated resistors to maintain functionality at low temperatures
• Adjustable opening speed up to 2.0 / 1.0 m/s depending on size
• Safety photocell barrier
• Wind resistance: not classified (intended for indoor cold-storage use)

Optional equipment

• Motor cover
• Silk-screen printing on fabric (custom marking)
• Frame painted to specified RAL colour
• Opening control options: UPS, remote control, radar, presence sensors
• Custom coloured or silk-screened fabric
• Light and sound indicators

Available colours

• RAL 9005
• RAL 8014
• RAL 7016
• RAL 7037
• RAL 7038
• RAL 5010
• RAL 5005
• RAL 5002
• RAL 6026
• RAL 3002
• RAL 2004
• RAL 1003
• RAL 1014
• RAL 9016

Notes
Specifically designed for freezing chambers; components and heating systems reduce frost accumulation and ensure operational reliability at low temperatures.

Technical specifications

• Curtain: 3-layer (2 PVC + 1 foam) reinforced polyester
• Curtain operating temperature: -35 °C to +70 °C
• Maximum dimensions: 3600 x 4000 mm
• Intended use: indoor cold-storage/freezing chambers
• Frame: anodised aluminium with heated guides
• Motor: equipped with heated resistors
• Opening speed: adjustable up to 2.0 / 1.0 m/s depending on size
• Safety: photocell barrier
