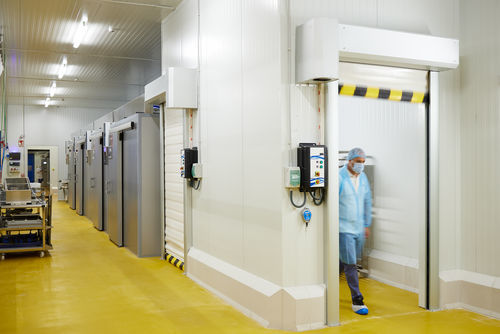

Isolated roller shutter

electrically-poweredaluminumroll up

Overview
The high-speed insulated roll-up door for cold storage up to 0 °C is designed to compartmentalise areas where the maximum temperature difference is 25 °C (e.g. 0 °C interior / 25 °C exterior) and the ambient humidity does not exceed 30%. It reduces energy losses from door openings; high operating speed minimises temperature loss and improves process efficiency.

Main application

• Indoor installation in cold-storage and conservation chambers that require thermal isolation and fast, frequent operation

Features

• Insulated high-resistance polyester curtain (approx. 1350 g/m²) with foam coating
• Operating temperature range: -25 °C to +70 °C
• Recommended maximum dimensions: 3600 mm (width) x 4000 mm (height)
• Structure in anodised aluminium (RAL lacquering optional)
• Adjustable opening speed up to 2.0 / 1.0 m/s depending on dimensions
• Fabric options: two heavy-duty types (resistant to welding spatter, impact and cutting) and a high-temperature variant
• Motor with heated resistors for reliable operation in cold environments
• Safety: photocell barrier for presence detection

Optional equipment

• Motor cover
• Silk-screen printing on fabric (custom printing subject to consultation)
• Structure lacquered in specified RAL colour
• Opening systems and accessories: UPS backup, remote control, radar detectors, various sensors
• Coloured or custom-printed fabric
• Light and sound indicators

Colors

• RAL 7037
• RAL 9016

Peepholes / Vision panels

• Clear vision panel
• UV-filter vision panel option

Technical specifications

• Curtain material: reinforced polyester, approx. 1350 g/m², foam coated
• Working temperature: -25 °C to +70 °C
• Maximum recommended dimensions: 3600 x 4000 mm
• Intended for indoor installation
• Wind resistance: no classification / class 0
• Structure: anodised aluminium (RAL lacquering optional)
• Opening speed: adjustable up to 2.0 / 1.0 m/s depending on dimensions
• Safety systems: photocell barrier
• Motor with heated resistors for cold environments
• Customization options: fabric type, colour, printing and accessories
