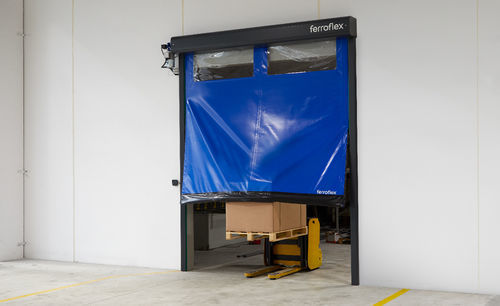

Electrically-powered roller shutter

roll upautomaticaccess

Overview
The self-repairing high-speed roll-up door is engineered for intensive traffic areas where frequent passage of people, goods or mobile equipment occurs. Its side-zip self-repairing system allows the curtain to disengage from the guides on minor accidental impacts and to reinsert automatically during the next cycle, restoring operation without manual intervention. A reduced-lintel option is available to maximize clear opening height where headroom is restricted.

Main advantages

• Side-zip self-repairing system: controlled disengagement and automatic reinsertion of the curtain after light accidental impacts.
• High airtightness and wind resistance (standard: wind resistance class 2).
• Designed for intensive use in logistics and industrial passages, including loading/unloading zones and areas with mobile machinery.
• Reduced-lintel option: operator height reduced from 480 mm to 275 mm to increase usable passage height.

Applications

• Industrial storage and logistics (loading bays, internal separations).
• Supermarkets, retail entrances and high-frequency commercial areas.
• Car parks, driveways and controlled vehicle/pedestrian access points.
• Cold storage and conservation areas (adapted versions available for low-temperature use).

Optional equipment & configurations

• Motor position: lateral or frontal; right or left configuration.
• Structure in AISI 304 stainless steel (available for max. dimensions up to 3800 x 3800 mm).
• Motor cover available.
• Opening control options: UPS (backup power), remote control, radar detectors, presence/immotion sensors and other activation systems.
• Extended dimensions available as option: up to 6000 x 6000 mm.
• Fabric customization: coloured or screen printing on one or both sides.

Colors

• RAL 9005
• RAL 8014
• RAL 7016
• RAL 7037
• RAL 7038
• RAL 5010
• RAL 5005
• RAL 5002
• RAL 6026
• RAL 3002
• RAL 2004
• RAL 1003
• RAL 1014
• RAL 9016

Peepholes / Viewing options

• Shapes: square or rectangular viewing windows.
• Positions: horizontal or vertical mounting options.
• Quantity: multiple peepholes/windows can be fitted according to project requirements.

Frequently asked questions (extract)

• What does self-repairing mean? The curtain can leave the guides on minor accidental impact and will re-enter automatically on the next operation, restoring normal function. Severe impacts that fully displace the curtain require manual reinsertion.
• Where can this door be installed? Suitable for indoor and outdoor installation (standard wind resistance class 2); intended for intensive use in high-traffic environments.
• What finishes are available? Chassis: lacquered steel in RAL colours or AISI 304 stainless steel. Fabric: customizable with screen printing on one or both sides.

Technical specifications

• Maximum dimensions (standard model): 4000 x 4000 mm.
• Optional dimensions: up to 6000 x 6000 mm (with specific equipment/options).
• Intended use: indoor and outdoor.
• Wind resistance: Class 2 (standard).
• Structure: lacquered steel in RAL colours (option: AISI 304 stainless steel).
• Opening speed: adjustable, up to approx. 2.0 m/s (or up to 1.5 m/s depending on dimensions and configuration).
• Reduced-lintel option: operator height reducible from 480 mm to 275 mm.
• Self-repairing system: side-zip that allows controlled disengagement and automatic reinsertion after minor impacts.
