Vertical sliding roller shutter

galvanised steelmotorizedautomatic

Description

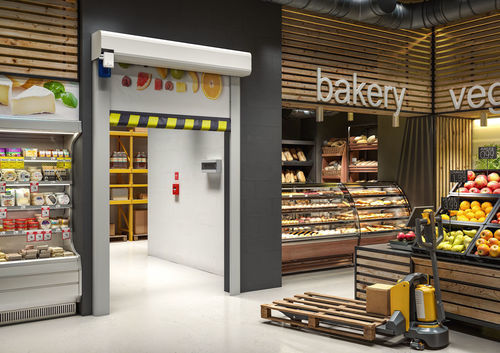

The Manusa self-repairing high-speed door for supermarkets and shops is designed to be installed in areas where it is necessary to separate different work areas and where storage space is needed, as it frees up the side walls and maximises the available area.

Operation and safety
Thanks to its opening and closing speed, it optimises the workflows of both people and merchandise movements. This type of high-speed door is manufactured in accordance with European safety regulations. The self-repairing system allows the side zip incorporated into the curtain to slide out of the guides to prevent breakage; when the door is raised, this zip is reinserted into the side guides, leaving the door operational again.

Customization
The curtain can be customised (colour, image or company logo printing) to match the store's visual identity or functional needs.

Optional equipment

• Opening options: magnetic loop, access control, pushbuttons or sensors
• 304 stainless steel structure
• UPS for emergency opening in case of power failure
• Silk-screen printing on the curtain
• Luminous signalling with LEDs

Colours

• RAL 9005
• RAL 8014
• RAL 7016
• RAL 7037
• RAL 7038
• RAL 5010
• RAL 5005
• RAL 5002
• RAL 6026
• RAL 3002
• RAL 2004
• RAL 1003
• RAL 1014
• RAL 9016

Peepholes

• Shapes available: square and rectangular
• Positions: horizontal or vertical installation options
• Possibility of multiple peepholes according to requirements

Technical specifications

• Vertical opening
• Maximum dimensions: 2500 x 3000 mm
• Suitable for indoor and outdoor use
• Wind resistance: class 2
• Steel structure
• Adjustable opening and closing speed: from 0.8 m/s to 2.0 m/s
• Integrated safety photocells
