Lifting door

sectionalvertical liftPUR

Description

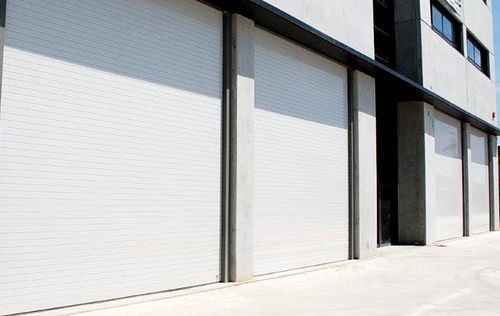

Sectional doors are an optimal solution for industrial and logistics facilities. Quiet and secure, they provide effective thermal insulation through a sealed closure that isolates the interior. The design minimizes visual impact and adapts to the architectural context. Multiple opening systems and adaptable solutions are available to meet installation requirements.

Applications

• Outdoor use in industrial and logistics environments
• Accesses to warehouses and industrial enclosures

Main features

• Sandwich panels 40 mm and 75 mm thick, ribbed and embossed, with high-density expanded polyurethane core
• Torsion springs with phosphated wire
• Guides and hardware in galvanized steel
• Flexible seals at hinged joints and lateral ends to ensure tightness
• Sealed closure and effective thermal insulation
• Design optimized for reduced visual impact
• Wind resistance: class 3
• Opening speed: 0.3 m/s
• Options for architectural integration through different lifting systems

Optional equipment

• Different lifting systems: standard headroom, high-lift, vertical lift and low-headroom
• Option to incorporate vision panels/windows
• Various panel finishes
• RAL colour options and material-effect finishes (steel, wood, etc.)

Colours

• RAL 7011
• RAL 6005
• RAL 3000
• RAL 1015
• RAL 7016
• RAL 5010

Frequently asked questions (summary)

• Types: sectional doors are classified according to lifting systems (standard headroom, vertical lift, over-head/high lift and low-headroom) to suit installation requirements.
• Are they suitable as security doors?: yes; they provide thermal insulation, sealed closure and a design focused on secure and quiet operation.
• Advantages of low-headroom: a solid and flexible solution for installations with minimal headroom, compatible with rear-mounted springs and suitable for installations with low headroom (for example from 200 mm).

Technical specifications

• Use: exterior
• Panels: sandwich 40 and 75 mm, ribbed and embossed, high-density expanded polyurethane core
• Springs: torsion with phosphated wire
• Guides and hardware: galvanized steel
• Wind resistance: class 3
• Opening speed: 0.3 m/s
• Tightness: flexible seals at hinged joints and lateral ends
• Available lifting systems: standard headroom, high-lift, vertical lift, low-headroom
