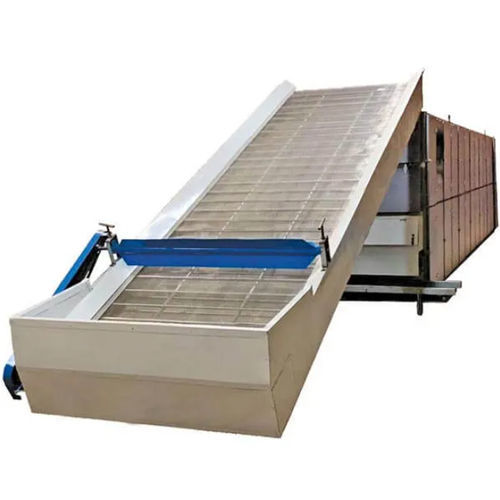

Drying conveyor 10T

belthorizontaltransport

Model: 10T (width: 1/8m, length: 6m) Motor power: 3 kW Material: food grade stainless steel Belt material: food grade stainless steel Switch-plate: keep the material evenly spreading on the belt Application: conveying material to the drying machine Discharging conveyor Width: 500 mm Length: 4000 mm Frame material: food grade stainless steel Belt material: food grade PVC belt Motor power: 0.55 kW Speed controller: 1 pieces Dryer Model: 12Mx4L Conveying belt: layer: 4 layers Insulation layer: rock wool 25 mm Mesh Belt material: 304SS Insulation layer, Rock wool 25mm, sealing rubber strip Mesh: SS 304 stainless Chain: P=25.4, Supporting roller, Supporting tube: φ21.5 Transmission shaft: φ45 Bearing: 6308 Frame: 8#U steel, 80*40 Galvanized square Sealing device: Rock wool insulation Discharge seal plate: alimunium silicate board Drying temperature: 0-90 degree centigrade, Can be adjusted Heat Exchange Furnace Fuel: natural gas Furnace Model: HFR Machine size: 3424*2182*1838mm Hot air blower system: hot air draft fan: 22 kW smoke exhaust fan: 2.2 kW Temperature: 0-90°C Control Cabinet Model: Frequency converter Control the motor power of dryer Control the speed of dryer Control the temperature of dryer Total power: 27.75 kW Physical Dimensions Total Power: 22.2 kW
