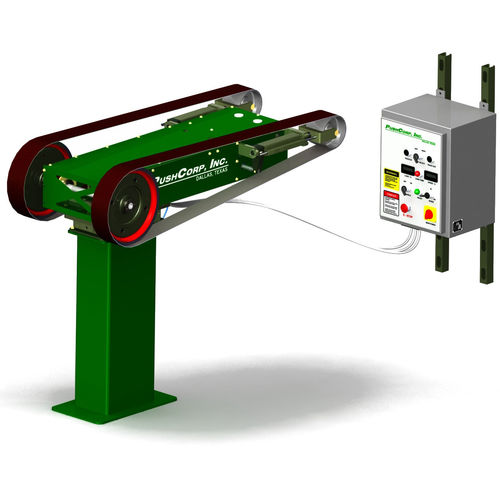

Belt sander SBS81 series
pneumaticfor woodfor metal

belt sander
belt sander
belt sander
Add to favorites
Compare this product


Characteristics

Type
belt
Operation
pneumatic
Applications
for wood, for metal
Other characteristics
speed control
Power

4.3 kW
(5.85 hp)

Description

Servo Belt Stand The PushCorp SBS81 Servo Belt Stand combines compliant force control with a high-torque servo motor. This precise force and speed control allows you to achieve unprecedented levels of quality and consistency. The SBS81 Servo Belt Stand is designed to enable maximum flexibility for any part-in-hand (i.e. grinding, sanding, buffing or polishing) application. Linear travel compliance and excellent access allow a robot to easily manipulate parts over the belt media. The contact wheels of the SBS81 Servo Belt Stand are belt driven by a high-torque servo motor. This drive system has a 2:1 reduction that provides plenty of power at the contact wheels. The belt media is tracked remotely keeping personnel out of the workcell during operation. Easily removable contact wheels allow widths of 1", 2", 3", and 4", plus a wide range of different rubber hardness. Changing the belt media is a snap with pneumatic tension and conveniently positioned manual valves. Here are just a few operations the SBS81 Servo Belt Stand, matched with the proper process equipment, can accomplish faster, more accurately, and with greater control than ever before: Grinding (casting gates, weld beads) Deburring (parting lines, chamfer) Polishing (glass, wood, metal) Responsive image SBS81 With Controller Features Passive Force Control Servo motor amplifier included Accurate belt media speed control 1.6 in [40 mm] linear compliant stroke Standard 1", 2", 3", or 4" x 132" belt media Standard 14" x 1", 2", 3", or 4" wide contact wheels PushCorp recommends Contact Rubber C134 quick change tires Contact wheel position output
