Panel saw SVP 145 PLUS
woodfor plasticsvertical

panel saw
panel saw
panel saw
panel saw
panel saw
panel saw
panel saw
Add to favorites
Compare this product


Characteristics

Technology
panel
Treated material
wood, for plastics
Other characteristics
vertical, precision, high-performance
Circular saw blade diameter

250 mm
(10 in)

Description

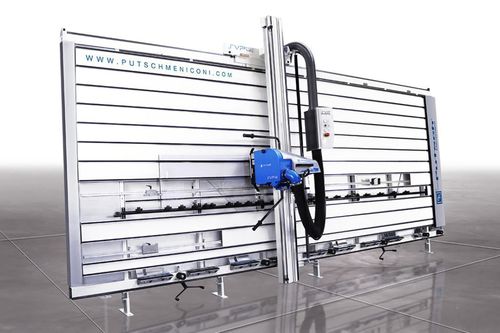

Vertical Panel Saw SVP 145 PLUS |a new design with a new ABS cover and an enhanced rotation transmission! Vertical Panel Saw SVP 145 PLUS always guarantees the highest precision and the biggest cutting dimensions 4200 mm length x 2200 mm height and 60 mm width. Vertical panel saw SVP 145 PLUS wall saw has technical characteristics of high level that make the tuning operations easier and material cutting effective. Vertical panel saw SVP 145 PLUS has the best standard endowments that meet the need of flexibility of the squaring machine and support to the user in the setting of the kinds of cutting. TECHNICAL DETAILS Motor output: 5HP Blade diameter: 250 mm Blade r.p.m. (min): 5300 Shifting frame: manual Max. lenght of horizontal cut: 4200 mm Max. height of vertical cut: 2200 mm Max. height of horizontal cut: 2080 mm Max depth of cut: 60 mm Scoring blade diameter: 70mm
