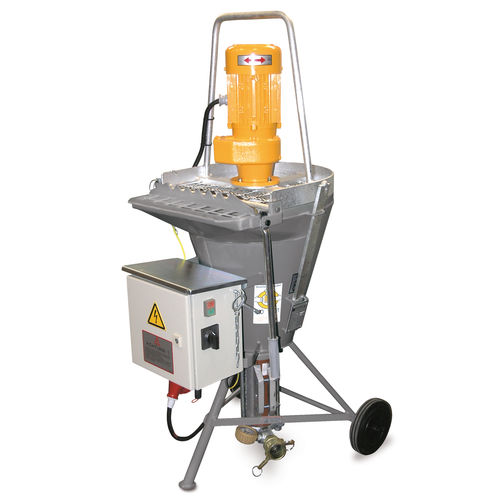

Mortar pump P 12 Sprayboy

Overview
This compact mortar pump mixes, pumps and sprays cementitious adhesive, thin skim coat and fire-protection mortar from a hopper, making it suitable for renovation, repair and protective-building applications.

Key Features

• Easy to transport
• Material hopper simple to clean
• Worm parts quick to change according to each application
• Designed for renovation and repair teams with small crews

Technical specifications

• Mixing Vessel: 50 l
• Output: 6-12 l³/min
• Horizontal Reach: 30 m
• Vertical Reach: 15 m
• Delivery Pressure: 25 bar
• Pump: D 5 short
• Engine: Electric
• Engine Power: 1.4 / 1.8 kW
• Engine Revolutions: 94 / 188
• Operating Voltage - Frequency: 400 V / 50 Hz + 60 Hz, 16 A, 5p, 6h
• Weight: 125 kg
• Length x Width x Height: 714 x 696 x 1437 mm
• Filling Height: 939 mm
• Max. Aggregate Size: 4 mm
• Outlet Diameter: M 35 mm
