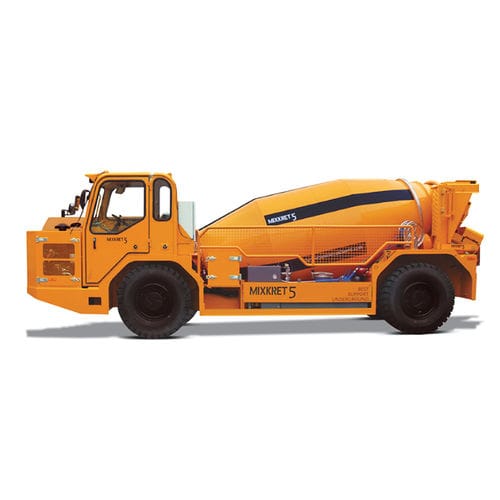

Underground mining mixer truck Mixkret 5

diesel

Overview
Compact and versatile concrete mixer designed to optimise shotcrete and general concrete delivery in mining applications. The Putzmeister Mixkret 5 features a 5 m³ mixing drum and complements Putzmeister’s low‑profile mixer range. The machine is driven by a diesel engine rated at 225 hp (168 kW) and fitted with an Integrated Continuously Variable Drive (ICVD) to maintain continuous traction and efficient power use.

Key Features

• Automatic speed regulation for safe full‑load travel at maximum permitted speed
• Mixing drum capacity up to 5 m³ (6.54 yd³)
• Integrated Continuously Variable Drive (ICVD) ensures correct relation between engine torque and drum/drive speed
• Low centre of gravity of the mixing drum for reliable and stable behaviour during travel and operation
• Optional liquid additive dosing/discharge system

Technical specifications

• Length x Width x Height: 7340 x 2200 x 2500 mm
• Weight (without load): 11500 kg
• Ground clearance: 320 mm
• Wheelbase: 4000 mm
• Max. longitudinal gradient while driving: 30 %
• Max. transversal gradient while driving: 10 %
• Inner turning radius: 2400 mm
• Outer turning radius: 6000 mm
• Engine type: Diesel
• Engine power: 168 kW (225 hp)
• Engine emissions: EU-Stage III A / EU-Stage V
• Max. speed: 20 km/h
• Diesel tank capacity: 265 l
• Max. concrete capacity: 5 m³ (6.54 yd³)
• Adjustable drum turning speed (both directions): 0–18 rpm
• Concrete discharge height: 1066–1403 mm
