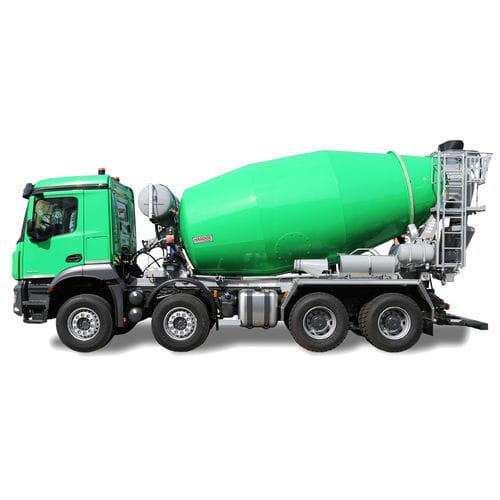

Concrete mixer truck P 7

lightweightlow CO2 emissions

Overview
The Putzmeister P 7 is a compact truck mixer designed for agile transport of smaller concrete volumes. Built for daily operation in harsh conditions, the mixer uses heat-treated boron/magnesium steel for improved wear resistance and an S500-steel enclosed frame for structural durability. The P 7 is offered in Standard, Light (L) and Ultra Light (UL) versions to match vehicle and payload requirements.

Key Features

• Fully automated Ergonic® Mixer Control (EMC)
• Optimised drum geometry for consistent mixing and discharge
• Enlarged service platform with ergonomic guard rail
• Large manhole: Ø 580 mm
• Long discharge chute: 1.45 m
• Enclosed mixer frame made from S500 steel
• Underride protection with integrated footstep
• Rear enclosure up to the vehicle frame
• Optional integrated stowage compartment
• Reduced fuel consumption and operating costs
• 27 Mn Cr B5 boron/magnesium steel — approx. 30% higher wear resistance
• UL version: approx. 20% weight saving vs. standard 4.5 mm steel constructions

General Information

• Nominal fill: 7 m³
• Water line: 8.23 m³
• Geometric volume: 12.97 m³
• Installation angle: 12.70°
• Overall height: 2645 mm

Configuration / Weights

• Standard Version: 3520 kg
• Light Version: 3170 kg
• Ultra Light Version: 3050 kg

Technical specifications

• Model family: P 7
• Nominal fill capacity: 7 m³
• Water line capacity: 8.23 m³
• Geometric volume: 12.97 m³
• Installation angle: 12.70°
• Overall height: 2645 mm
• Mixer materials: 27 Mn Cr B5 boron/magnesium steel (heat-treated); S500 steel frame
• Manhole diameter: Ø 580 mm
• Discharge chute length: 1.45 m
• Available versions: Standard, Light (L), Ultra Light (UL)
• Notable system: Ergonic® Mixer Control (EMC)
