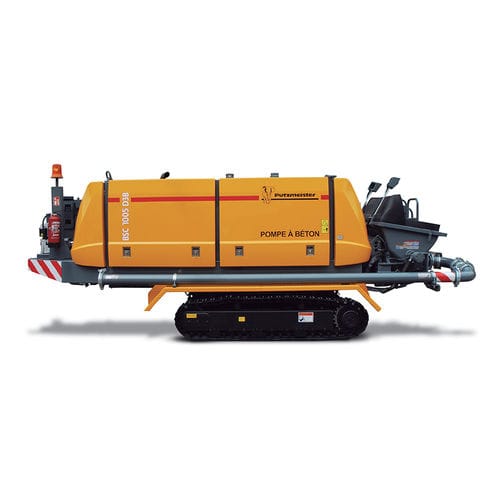

Crawler concrete pump BSC 1005 D3B

outdoorfor constructiondiesel

Overview
The BSC 1005 D3B is a crawler-mounted concrete pump designed for small to medium output applications, commonly used with drilling rigs for the production of small and medium diameter bored piles. The crawler chassis enables independent travel on site. The unit is supplied with a water pump, air compressor and compressed air tank as standard.

Short description
Crawler concrete pump driven by a Deutz 4-cylinder diesel engine (55 kW) with a maximum output of 58 m³/h (up to 75 yd³/h). Outlet diameter 125 mm. Engine meets Stage III B / Tier 4f emission standard.

Key Features

• Steel crawler chassis with rubber pads for site mobility
• Remote control for pump and crawler chassis operation
• Optional large front water tank (762 l) heated from the engine cooling circuit
• Delivery line arranged laterally

General information

• Output: 58 m³/h
• Delivery pressure: 71 bar
• Strokes per minute: 34
• Engine: Deutz 4-cylinder, 55 kW
• Material cylinder diameter / stroke length: 180 / 1000 mm
• Outlet diameter: 125 mm
• Dimensions (L x W x H): 5523 x 2018 x 2433 mm
• Operating weight: 5000 kg
• Chassis: steel crawlers with rubber pads
• Max travel speed: 2 km/h
• Diesel tank capacity: 135 l
• Engine emission standard: Stage III B / Tier 4f
• Water pump: 50 l/min, 20 bar
• Compressor: 860 l/min
• Compressed air tank: 40 l

Technical specifications

• Model: BSC 1005 D3B
• Type: Crawler-mounted concrete pump
• Maximum output: up to 75 yd³/h (58 m³/h)
• Delivery pressure: 71 bar
• Strokes per minute: 34
• Engine: Deutz 4-cylinder, 55 kW
• Material cylinder diameter / stroke length: 180 mm / 1000 mm
• Outlet diameter: 125 mm
• Dimensions (L x W x H): 5523 x 2018 x 2433 mm
• Operating weight: 5000 kg
• Chassis: steel crawlers (with rubber pads)
• Maximum travel speed: 2 km/h
• Fuel tank capacity: 135 l
• Engine emission standard: Stage III B / Tier 4f
• Water pump capacity / pressure: 50 l/min, 20 bar
• Compressor capacity: 860 l/min
• Compressed air tank volume: 40 l
• Standard equipment: water pump, air compressor and compressed air tank; remote control for pump and crawler; optional large front water tank (762 l)
