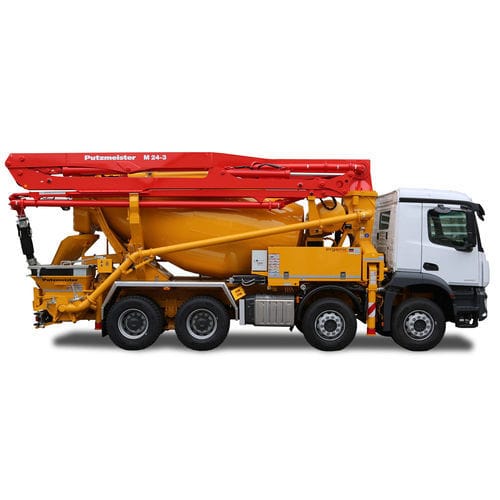

Truck-mixer concrete pump PUMI 24-3

Product overview
The Putzmeister PUMI 24-3 is a truck mixer concrete pump combining mixer, pump and a flexible 3-section Z-folding placing boom. It is designed for small to medium sites where conventional truck-mounted concrete pumps are too large, too expensive or insufficiently flexible.

Short description
Flexible 3-section placing boom with 20 m horizontal reach; compact, maneuverable chassis options for confined sites.

Key features

• High payload: over 5 m³ on 4-axle chassis
• Suitable for small jobsites when equipped with the rotor pump
• Available on a maneuverable 3-axle chassis with short wheelbase
• Allows concreting directly in front of the driver’s cabin
• Machine can be fitted with a range of useful accessories

General information

• Unfolding height: 23.8 m
• Gross horizontal reach: 20.0 m
• Net reach: 17.6 m
• Depth reach: 12.4 m
• End hose length (max): 3 m
• Delivery line diameter: 5.5"
• Water tank: 650 l
• Filling level (drum): 60%
• Drum speed: 1–14 rpm

Configuration - Piston Pump CS

• Output: not specified
• Delivery pressure: not specified
• Material cylinder diameter / stroke: not specified

Configuration - Rotor Pump R 60

• Output: not specified
• Delivery pressure: not specified
• Rotor hose (diameter): not specified

Technical specifications

• Model: PUMI 24-3
• Placing boom: flexible 3-section Z-folding
• Horizontal reach: 20 m
• Delivery line diameter: 5.5"
• Water tank: 650 l
• End hose length (max): 3 m
• Payload: >5 m³ (4-axle chassis)
