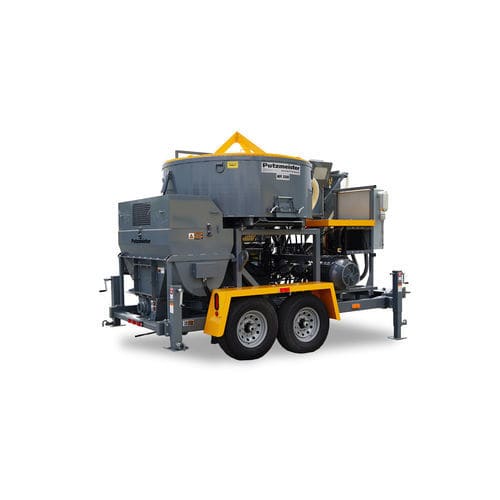

Mortar pump MR-3300

Overview
MR-3300 is a proven refractory pump integrating a pan-type mixer with a 1.5 mt (3,300 lb) capacity. The high-production TK 20 pump is combined with the 1.5 mt pan mixer in a trailer-mounted, self-contained configuration designed to simplify mobilization, setup, production and cleanup. The unit is optimized for wet refractory applications and delivers consistent output and reliability for demanding site conditions.

Key Features

• All functions operable by a single operator
• Trailer-mounted and fully self-contained
• Electric powered, 55 kW
• 6-position carousel mixer
• Hydraulic surge brakes for safe towing
• Spare tire included
• CE Certification
• Chemical dosing pump for admixture control

General Information

• Output: 13 m³/h
• Delivery pressure: 144 bar
• Process type: Wet refractory application
• Mixer capacity: 1.5 mt
• Mixer fill height: 2,743 mm
• Hopper capacity: 651 l
• Outlet diameter: 102 mm
• Engine: Electric
• Engine power: 55 kW
• Chassis: Heavy-duty tandem-axle trailer
• Brakes: Electric (hydraulic surge brakes specified in features)
• Length: 5,334 mm
• Width: 2,286 mm
• Height: 2,178 mm
• Weight (approx.): 5,760 kg

Technical specifications

• Model: MR-3300
• Mixer type: Pan-type mixer, 1.5 mt (3,300 lb) capacity
• Pump basis: TK 20 refractory pump (high production)
• Rated output: 13 m³/h
• Max delivery pressure: 144 bar
• Process: Wet refractory application
• Mixer fill height: 2,743 mm
• Hopper capacity: 651 l
• Discharge / outlet diameter: 102 mm
• Power: Electric, 55 kW
• Chassis: Heavy-duty tandem-axle trailer
• Brakes: Electric (hydraulic surge brakes as feature)
• Dimensions (L×W×H): 5,334 mm × 2,286 mm × 2,178 mm
• Approx. weight: 5,760 kg
• Certifications: CE Certification
