Mortar pump KOS

Product overview

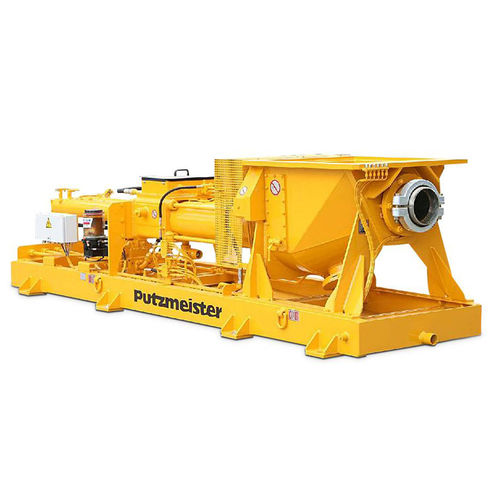

The Putzmeister KOS is a valveless two-cylinder piston pump designed to convey thick media with high solids content. The pump unit includes a robust pump hopper for reliable material feed, two hardened delivery cylinders with one piston each and an S-transfer tube connecting the delivery cylinders to the discharge flange.

Operation and design
Changeover of the S-transfer tube is performed by two powerful plunger cylinders, allowing the pump to handle foreign bodies such as stones and brief dry running. The S-transfer tube is adjustable to compensate wear and extend wear part life. Two hydraulic cylinders drive the delivery cylinders. An intermediate waterbox permits flushing and cooling of the cylinders and enables quick piston replacement during maintenance. All moving parts are served by a central grease lubrication system available in manual or electrical versions.

Applications
The KOS is suited for sewage sludge, oil sludge containing foreign bodies, bio-waste and other waste streams, chemical and organic high-density solids with high viscosity, and highly dewatered sewage sludge. It also handles coarse sludges and slurries with large grain content and abrasive or aggressive media when equipped with suitable materials.

Key features

• Reinforced S-pipes and S-pipe piston for shearing off foreign bodies
• S-pipe with ears for a quiet delivery line at high pressure
• Automatic reverse pumping function to prevent and clear blockages
• Mixer paddles in the feed device for material homogenization
• Agitators in the suction housing for very stiff and inhomogeneous materials
• Option of different machine element materials to handle abrasive or aggressive media
• Various feed devices available on the suction side
• Optional damping vessel pipeline flanges on hopper suction inlet, horizontal or vertical agitator options
• Low maintenance due to fewer moving parts
• High-volume unrestricted in-feed reduces suction resistance
• Hydraulic circuit remains separate from pumped material

Technical specifications

• Model family: KOS
• Pump type: valveless two-cylinder piston pump with S-transfer tube
• Feeding: robust pump hopper for reliable feeding
• S-transfer tube: changeover by two plunger cylinders, adjustable for wear
• Drive: two hydraulic cylinders for delivery cylinders
• Waterbox: intermediate waterbox for flushing, cooling and quick piston replacement
• Lubrication: central grease lubrication system (manual or electrical)
• Suitable materials: sewage sludge, oil sludge with foreign bodies, bio-waste, chemical and organic high-density solids, highly dewatered sewage sludge
• Weight: see site unit indication
