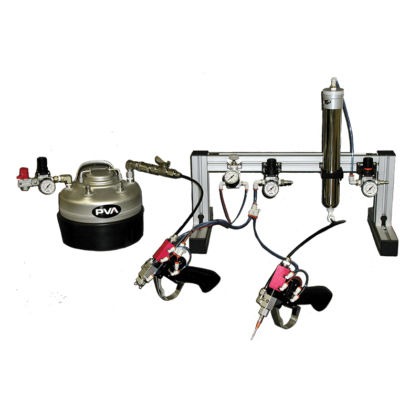

Adhesive coating system MCCS-SYS-2

Spray one material from one pressure tank Dispense a second material from a cartridge First material is poured into stainless steel pressure pot. Second material cartridge is placed in reservoir. Air pressure is applied to valve handles. Air pressure is applied to feed both materials to valves. Triggers on handles are depressed to begin dispensing. Fluid pressure is individually adjusted to control flow. Stroke adjuster on valve can be adjusted to control flow rate. Atomizing air pressure is adjusted to spray material. Stroke adjuster on valve can be adjusted to control flow rate. PVA also offers optional accessories for this system. Two solvent stands to hold valve handles FCS1-SP, spray valve spare parts kit FC1-SP, dispense valve spare parts kit B62-0801-SP, system spare parts kit Conformal Coating The application of a protective film or layer of liquid onto a PCB, either in selected areas or over the entire assembly. Conformal coatings are applied using an array of technologies such as atomized spray, airless film, needle dispense and jetting.
