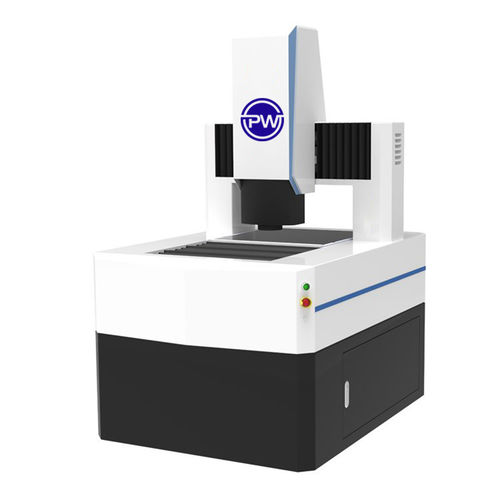

Vision measuring machine PW-OAV652

lightcontourlaser

PW-OAV652 Auto Vision Measuring Machine 2.5D High Accuracy Fully Auto Image Measuring Machine • Moving Bridge type structure, measuring workpiece is fixed; • Four-axis CNC fully auto close loop control, auto measurement; • Marble base and pillar, good stability; • Imported linear scale, resolution is 0.1um, grinding ball screw and AC servo motor etc. to ensure the precision and stability of the motion system; • Imported HD color camera to meet the needs of clear observation and accurate measurement; • 5x high-resolution motorized zoom lens, accurate doubling and one times pixel correction only needed; • With programmable surface 5-ring 8-division LED Cold Illumination and contour LED parallel illumination and built-in intelligent light adjustment, it can automatic control the brightness in the 8-division; • Powerful function and easy operation Pw Master 5.1Measuring Software to enhance quality control; • Optional MCP Probe and Laser Senser Module. Machines can be customized according to customers’ requirements.
