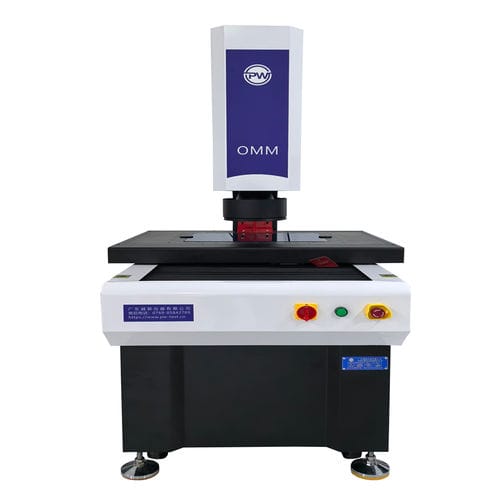

Vision measuring system PW-OAS432

lightfully-automaticCNC

PW-OAS432 High Quality Cantilever Instant Vision Measuring System with Fully Automatic Instant Vision Measuring Machine IVS series is cantilever fully automatic instant vision measuring machine with double-magnification lens system developed for GD&T measurement with three axis automatic motorized control. It equipped with automatic focusing, automatic lighting control, and automatic movement of hardware and software configuration to make the measurement of linear and geometrical dimensions quickly and accurately. • Equipped with a 20 million pixel camera and a dual telecentric lens with double magnification, the imaging quality is excellent; • The high telecentricity design below 0.02° ensures measurement accuracy for products with significant height differences; • The low TV distortion below 0.01% and the uniformity of distortion over the entire image ensure the dynamic repeatability accuracy of the measurement; • The dual magnification design enables efficient measurement with a large field of view and high-precision measurement with high magnification, satisfying customers’ dual needs for efficiency and accuracy; • The XYZ three-axis CNC fully automatic precision control ensures accurate positioning; • The use of an Indian marble base and column provides good stability; • Precision linear guides, ballscrees and AC servo motors, ensure the accuracy and stability of the motion system; • The 0.5μm high-precision linear scale ensures the positioning and measurement accuracy of the system; • Equipped with various light sources and an intelligent lifting function to adapt to various measurement scenarios;
