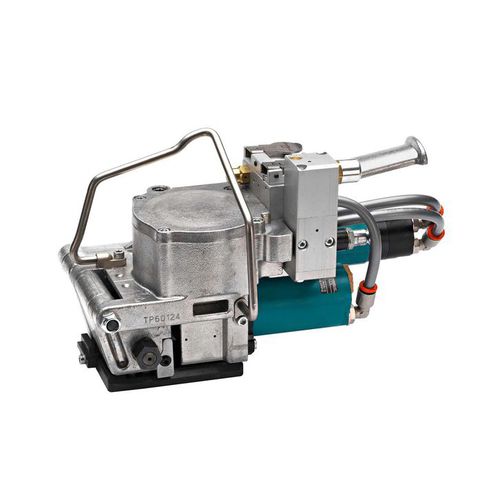

Pneumatic strapping tool TP 500

for PP-PET straps

The pneumatically operated TP hand-held tools from TITAN are particularly robust, reliable and resistant to external influences such as moisture, dirt and heat. Consequently, the purely mechanical operation, has proven repeatedly especially in harsh, industrial use under adverse circumstances. Thanks to its powerful pneumatic motors, the TP 500 achieves a tensioning force of up to 5,000 N at a strap thickness of up to 19 mm. The mechanical display of the cooling time provides more comfort in harsh conditions. It is also reversible, which means that it is easy to remove the tool from the finished strapping. TP 500 is perfectly suited for planar packages with sealless joint. You can integrate the TP series optimally into the existing periphery. For a smooth changeover to PET strap. Technical Data : • Kind of drive (tensioning) : Pneumatic • Tension force : max. 5,000 N (adjustable) - LT version • max. 6,000 N (adjustable) - HT version • Kind of drive (sealing) : Pneumatic • Strap feeding speed : 6 m/min. • 19.7 ft/min. • Dimensions : 300 x 150 x 175 mm (L x W x H) • 11.8 x 5.9 x 6.9" (L x W x H) • Weight : 5.1 kg • 11.2 lb • Air pressure : max. 6.5 bar flow pressure • Air consumption • (during tensioning) : 14 L / s • Cross-section : G 3/8" • Handarm vibration : 2.5 m/s² • Noise level : 77 dB (A) • Strap/Joint : • Type of strap : Plastic strap • Strap : PET • Strap width : 16 mm ( LT Version only) • 16, 19 mm (HT Version) • 0.63" (LT version only) • 0.63" ; 3/4 " (HT version) • Strap thickness : 1.00 - 1.27 mm • 0.039 - 0.050" • Kind of seal : Friction-weld joint • Sealing strength • (depending on strap quality, strap dimensions) : approx. 80% of the strap breaking load
