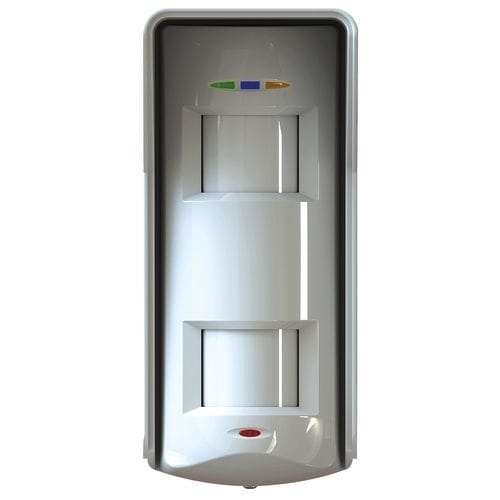

Presence detector XDH10TT-WE

PIRdigitalmicrowave

Two-way wireless Tri-signal detection logic 10m volumetric coverage 3 Microwave frequency bands Built-in walk test buzzer Heavy duty ultraviolet filter Automatic temperature compensation One-Push-To-Learn button Weatherproof sealed optics Optional heavy duty wall bracket Two-way wireless external detection The XDH10TT-WE is an external detector that combines advanced technologies such as Tri-technology detection and the Enforcer two-way wireless protocol. Tri-signal detection logic Tri-signal detection logic enhances the detector’s immunity to environmental disturbances. The detection of human presence is based on the analysis of the activation sequence of the microwave movement sensor and the two independent digital PIR sensors. All three sensors are required to activate at the same time in a particular time window to create an alarm. Heavy duty ultraviolet filter Ultraviolet light is always present in our environment. Exposure to high radiation reduces performance and can fully blind the PIR lenses. This is why Pyronix XD lenses are manufactured to the highest standards and coated with a heavy duty ultraviolet filter to ensure protection from UV radiation. Built in walk test buzzer Where bright sunlight is present, it may be difficult to see the detector’s alarm LEDs from a distance. To enable the installer to perform an easy and quick walk test during the installation, the XD is equipped with a built in buzzer. This will create a buzzing noise to indicate an alarm activation. The buzzer can be disabled if not required. Weatherproof housing The housing of the XD detectors is made from 3mm thick polycarbonate plastic, providing protection
