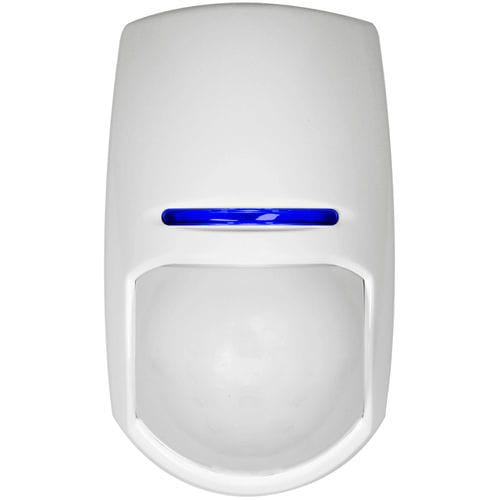

PIR detector KX15DT

LEDmicrowavewireless

Dual technology detector using PIR and Microwave sensors Selectable EOL (End Of Line) resistors AND/OR technology Patented Independent Floating Thresholds (IFT) Blue Wave Technology Auto sensitivity feature and digital temperature compensation Triple LED indication Different frequency options avoiding microwave crosstalk Sealed optics Tamper proof brackets included Complies with EN50131-1 The KX15DT features Dual element pyro-electric sensor with X-band DRO based microwave both of which need to be triggered to set off the Alarm, this reduces the risk of false alarms. With Blue Wave Technology (BWT) and digital temperature compensation the detector will adjust its sensitivity, further enhancing the detectors immunity to false alarms and environmental disturbance. 15m Volumetric detector 15m Volumetric detection coverage. Ideal for protection of rooms and offices in commercial environments. Selectable EOL resistors The detector incorporates selectable alarm resistor values of 6K8, 5K6, 4K7 &1K & tamper values of 5K6, 4K7, 2K2 and 1K catering for most control panels on the market. AND/OR technology ‘AND’ mode operates as a standard dual technology detector, where both technologies need to active to cause the alarm. ‘OR’ mode will switch the sensors activation of the alarm input to be either the PIR ‘OR’ Microwave. This can be useful in environments where there is a risk of PIR detection being blocked. Active self test If there is no activation after a 5 hour period it will actually self test both the PIR and microwave.
