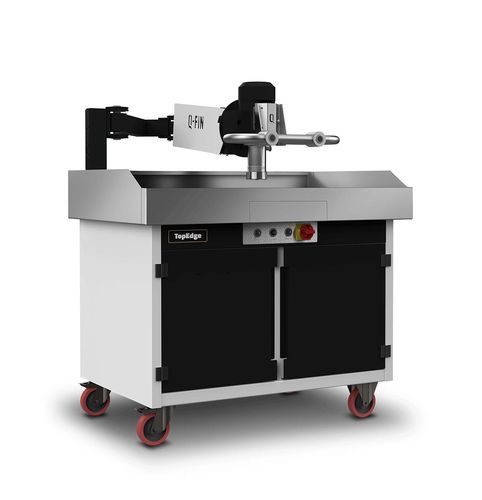

Automatic milling machine TopEdge

3-axisverticaldirect-drive

Ergonomic table milling machine Produce in accordance with all applicable guidelines with the TopEdge. The milling machine for achieving a perfect radius (from R=2 to R=8) quickly and with minimal effort or bevel a welding edge. - Low effort and vibration-free - Constant and precise processing - Ergonomic and safe two-button operation - Stepless adjustable speed - Includes lubrication system - Safe and healthier way of working - Hole pattern and 4 magnets for fixation With the balance arm and the weight of the milling head, you can work with minimal physical effort and vibration-free. This ensures a consistent and precise finish, whether you are milling a radius or a bevel. The milling head is easily adjustable to different angles for various applications. Thanks to the convenient tool mount, you can quickly switch tools, and most commercially available milling tools – such as those from BevelTools – are compatible with the TopEdge machine. A precise bevel creates a larger weld surface, allowing better adhesion of the welding material. This results in a stronger connection between the plate parts and also improves the penetration. In addition to milling a 45° bevel, this semi-automatic milling machine can also mill a custom radius (from R=2 to R=8), suitable for steel, aluminum, or stainless steel. The TopEdge is equipped with a work surface that features a hole pattern similar to a welding table. In combination with welding clamps, the workpiece is securely held in place. Optionally, you can choose a worktable with electromagnets, which allows you to quickly and strongly fix steel products, with a magnetic pull force of 300 kg per magnet. The machine features a safe two-hand operation, ensuring you always work in a controlled manner. Additionally, vibrations to the operator are significantly reduced, greatly lowering the risk of complaints such as WVF (white finger disease) or HAVS (hand-arm vibration syndrome). - Authentication: CE - Operation: Swing bar with 2-hand operation - Speed: Steplessly adjustable - Product fixation: Hole pattern and 4 magnets - Milling heads: 1 - Maximum workpiece height: 120 mm - Maximum workpiece width: 780 mm / length unlimited - Machine power supply: 400 V | 50 Hz | 10 A | 6 kW - Dimensions (L x W x H): 1435 x 1100 x 1510 mm - Weight: 445 kg
