Video macroscope Qeye 800

Introduction

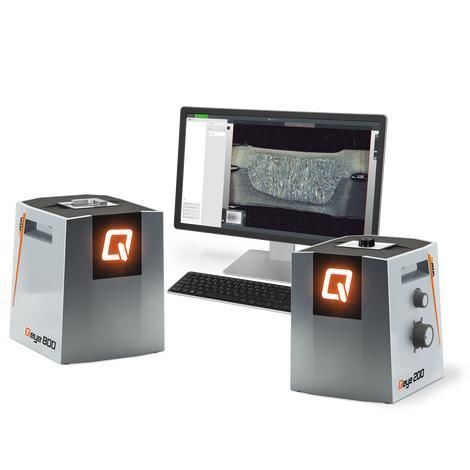

The Qeye 200 and Qeye 800 inverse macroscope optical analyzers deliver reproducible, standards-based macrosection imaging and measurement for welds, solder joints and components. Qeye 200 is optimised for demanding laser-weld analysis (R&D, electronics, automotive). Qeye 800 is designed for series production and materials testing where throughput and repeatable evaluation are essential. Both systems use Intelligent Area Illumination (IAI) and Qpix Control2 software for standardized reporting (e.g. DIN EN ISO 5817).

Product Video
Introductory video available for Qeye 800 demonstrating system layout, IAI modes and basic operation (product demonstration).

Compact precision for detailed macrosection analysis

• Macrosection imaging and measurement of weld geometry
• Laser weld inspection in automotive and electronics applications
• Evaluation of solder joints and delicate assemblies in precision engineering
• Inline and offline process monitoring for production environments
• R&D support for joining process development

Qeye 200 / Qeye 800 key optical features

• 12 megapixel camera system (4K Ultra HD)
• Discrete zoom steps: 0.63x – 1x – 1.6x – 2.5x – 4x
• Field of view presets: approx. 23.7 x 17.8 mm down to 3.7 x 2.8 mm
• Integrated automatic brightness control plus manual fine-tuning
• Handwheel with five preset magnification positions for precise adjustments

Areas of application

• Standard-compliant macro weld inspection and documentation
• Laser weld quality control (automotive, electronics)
• Surface defect inspection and PCB/component assessment
• Material testing in laboratories: penetration, weld shape, defect analysis
• Production quality assurance, process monitoring and R&D in joining technology

Innovative operation — convincing benefits

• IAI (Intelligent Area Illumination): LED analysis-area illumination with four switchable, dimmable profiles to minimise reflections
• Programmable capacitive touch buttons (glove-capable) for rapid access to zoom, lighting and analysis functions
• Customisable touch panel with five transportable functions for workflow optimisation
• Industrial-grade design with easy-replace glass sample carrier and dust-tight assembly
• Integration of optical analysis and hardness testing via Qpix Control2 for unified reporting and live image/3D Smartview

Measurement & reporting capabilities

• Comprehensive measuring tools: lengths, angles, circles, polygons for area and perimeter
• Template mode with reference images and predefined survey elements for repeatable inspections
• Snapping measurement lines and linked measurements for complex geometries
• Standard-compliant test reports (e.g. DIN EN ISO 5817) with evaluation groups and full documentation

Accessories & tools (selection)

• Glass sample carriers 95 x 75 x 2 mm (aluminium silicate glass) — sets available
• Qeye Cover shielding hood to eliminate stray light and reflections (standard)
• Object micrometer 50 mm, resolution 0.1 mm — calibration certificate optional
• Cleaning materials: microfiber cloths and special glass cleaners recommended for sample care

Technical specifications

• Field of view: 23.7 x 17.8 mm – 3.7 x 2.8 mm (0.933 x 0.7" – 0.146 x 0.11")
• Zoom levels: 0.63x – 1x – 1.6x – 2.5x – 4x
• Camera: 4K Ultra HD, 12 megapixel, USB 3.0
• Illumination: IAI LED unit (Intelligent Area Illumination)
• Software: Qpix Control2
• Operation: external PC (Windows 11 64-bit)
• Glass sample carrier dimensions (L x W x H): 95 x 75 x 2 mm
• Max. sample weight: 5 kg
• Interface: 1 x USB 3.0
• Power: 100–240 V ~1/N/PE, 50–60 Hz
• Power consumption: Idle ~35 W | Operation ~60 W | Max ~100 W
• Dimensions (L x W x H): 220 x 220 x 260/365* mm (*incl. Qeye Cover)
• Required workspace: 300 x 300 mm
• Weight: 16 kg
• Ambient temperature: 18–28 °C
• Max. humidity: 70% non-condensing
