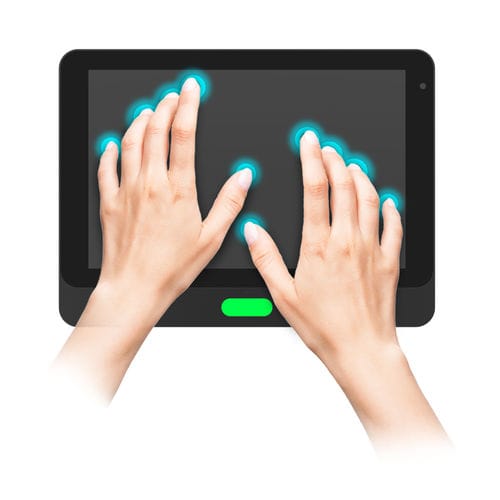

LCD panel PC / multitouch screen / 10.1" / 1024 x 768
TD-1050 PRO

{{requestButtons}}

Characteristics

  • Screen type:

    LCD, multitouch screen

  • Display size:

    10.1"

  • Resolution:

    1024 x 768

  • Processor:

    ARM Cortex

  • Other characteristics:

    embedded

  • Applications:

    industrial

Description

Qbic 10.1” high-resolution TD-1050 PRO are a perfect addition to the space management system that extends from meeting-room-front management to in-meeting-room management. Incorporated with technology honed to make any conference collaboration across the board easier, more effective and simple to manage.

OSAndroid 8.1
TouchYes, Multi touch
NFC/RFIDStd.
Opt.: H Version, (Embedded Human-Interface-Device)
(13.56MHz and 125KHz)
Memory2GB DDR3
Storage16GB eMMC
Video decoderH264 / H265,VC-1, MPEG-4, VP8
Image codecsJPEG/BMP/GIF/PNG
Audio codecsMPEG/OGG/AAC
CPUARM Octa-core Cortex-A53 up to 1.5GHz (64 bit)
PoE+Yes
Beacon (BLE)Yes
Microphone2 (Noise Reduction Microphone)
PIR Sensor

Support Qbic AC-211 PIR sensor
WatchDogYes, Independent watchdog
Display
Size10.1"
I/O Interface
Ethernet1 x RJ45 (10M/100M)
WLAN802.11 b/g/n
USB2 x USB2.0 type A/ 1 x Micro USB (ADB)
Analog Stereo out1 x 3.5mm stereo
Expansion storage1 x Micro SDHC slot
Speaker2W x 2
