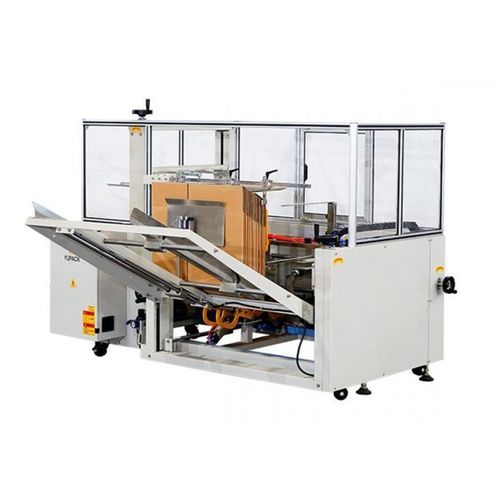

Automatic case erector YPK-4012adhesive tape
Add to favorites
Compare this product
Characteristics
- Operational mode
- automatic
- Technology
- adhesive tape
- Throughput
Max.: 12 p/min
Min.: 9 p/min
Description
YPK-4012 Automatic case erector is used for carton forming and bottom sealing at same time.The max capacity can up to 12 cases/min. It is widely used with our fully automatic packing line.
Features
1:Automatic box suction, forming, and bottom sealing at same time, and the maximum capacity can up to 12 boxes/min.
2:Imported electrical configuration, more stable performance
3:Can be used alone or with conveyor line
Mechanical configuration
1:Cylinder/solenoid valve: Taiwan AIRTAC
2:PLC/MHI:Siemense
3:Low voltage electrical appliances: Schneider/Omron
4:Cutter:SKD11
Voltage
220v 50hz 1p
Power
200w
Table height
620mm
Air
6kg/cm²
Tape
W48-75mm
Machine size
L2100*W2100*H1480mm
Machine weight
620kg
5:Color:7035 white+ alert yellow
VIDEO
Catalogs
Model YPK4012
2 Pages
