Roller conveyor

bearingpalletfor transport

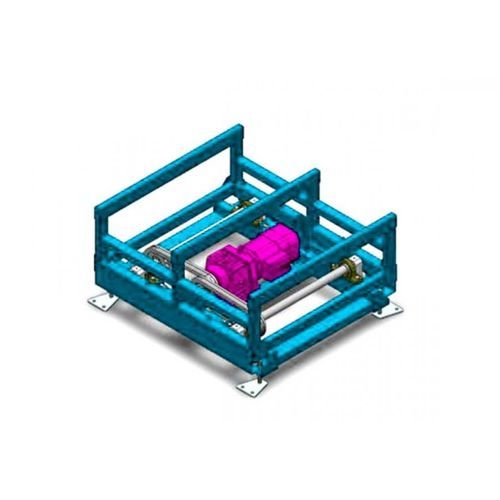

Jacking mechanism: welding type bottom frame with height adjusting foot, base type deceleration motor is placed in the middle of the bottom frame, two shafts are connected by bearing pedestal and bottom frame on both sides respectively, two shafts are connected with the motor by driving chain respectively. Each shaft and both ends are equipped with needle roller bearing crank arm to form the jacking structure. Bottom bracket: M20 screw adjusting pin is fixed to the ground (two mounting holes for anchor bolts). Accessory device: photoelectric support (lift two positions, in place detection). Purchased parts configuration: reducer motor SEW, chain for hangzhou donghua, bearing with seat TR, ha shaft for bearing. Surface coating: steel wire brush, sand paper are used to remove rust, acid wash to remove grease. After phosphating, the surface is sprayed with epoxy powder and baked. The thickness of resin is between 60 m and 80 m. • Welded bottom frame • R series built-in motor • CAM lifting, travel Max.200mm • Intermediate device type
