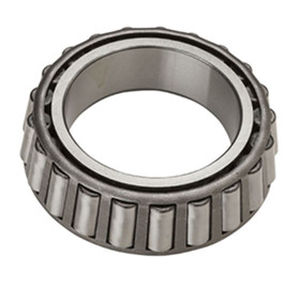

Tapered roller bearing JL series

radialaxialsteel

d 35mm D 60mm T 15.875mm C1 38400N C0 48700N m 0.1845kg material Chrome steel Tapered roller bearings are rolling element bearings that can support axial forces (i.e., they are good thrust bearings) as well as radial forces. The inner and outer ring raceways are segments of cones and the rollers are tapered so that the conical surfaces of the raceways, and the roller axes, if projected, would all meet at a common point on the main axis of the bearing. This geometry makes the motion of the cones remain coaxial, with no sliding motion between the raceways and the OD of the rollers. This conical geometry creates a linear contact patch which permits greater loads to be carried than with spherical (ball) bearings, which have point contact. The geometry means that the tangential speeds of the surfaces of each of the rollers are the same as their raceways along the whole length of the contact patch and no differential scrubbing occurs. E has different special properties with other inner rings or outer rings marked with the same basic parts code, not interchangeable inner rings or outer rings. There is a stop ring on the outer diameter of RB
