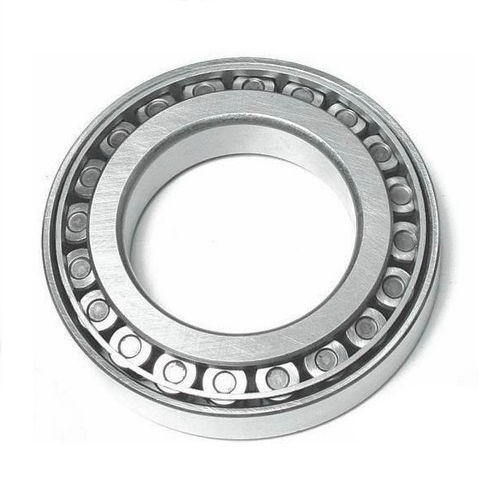

Tapered roller bearing M series

radialaxialsteel

Part Number M201047 - M201011, Tapered Roller Bearings - TS (Tapered Single) Imperial Specifications Series : M201000 Cone Part Number : M201047 Cup Part Number : M201011 Design Units : Imperial Bearing Weight : 0.4 Kg 0.9 lb Cage Type : Stamped Steel Dimensions d - Bore : 39.688 mm 1.5625 in D - Cup Outer Diameter : 73.025 mm 2.8750 in B - Cone Width : 22.098 mm 0.8700 in C - Cup Width : 21.336 mm 0.8400 in T - Bearing Width : 25.654 mm 1.0100 in Abutment and Fillet Dimensions R - Cone Backface "To Clear" Radius1 : 0.760 mm 0.03 in r - Cup Backface "To Clear" Radius2 : 2.29 mm 0.090 in da - Cone Frontface Backing Diameter : 48.01 mm 1.89 in db - Cone Backface Backing Diameter : 45.47 mm 1.79 in Da - Cup Frontface Backing Diameter : 69.10 mm 2.74 in Db - Cup Backface Backing Diameter : 64.01 mm 2.52 in Ab - Cage-Cone Frontface Clearance : 2.8 mm 0.11 in Aa - Cage-Cone Backface Clearance : 0 mm 0 in a - Effective Center Location3 : -5.8 mm -0.23 in Basic Load Ratings C90 - Dynamic Radial Rating (90 million revolutions)4 : 4280 lbf 19000 N C1 - Dynamic Radial Rating (1 million revolutions)5 : 16500 lbf 73400 N C0 - Static Radial Rating : 20000 lbf 89100 N Ca90 - Dynamic Thrust Rating (90 million revolutions)6 : 2440 lbf 10800 N Factors K - Factor7 : 1.76 e - ISO Factor8 : 0.33 Y - ISO Factor9 : 1.8 G1 - Heat Generation Factor (Roller-Raceway) : 27.5 G2 - Heat Generation Factor (Rib-Roller End) : 15 Cg - Geometry Factor : 0.0736 Tapered roller bearings are rolling element bearings that can support axial forces (i.e., they are good thrust bearings) as well as radial forces.
