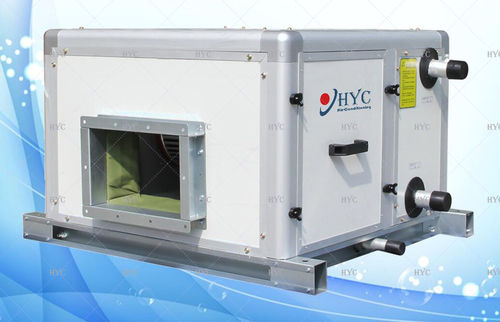

Horizontal air handling unit

Related introduction Air flow: 1500 to 40000 m³/h WIDE AIR FLOW RANGE Standardly, ceiling concealed type AHU air flow ranges from 1500 to 15000m3/h; horizontal/vertical type AHU air flow ranges from 2000 to 40000m3/h, able to fulfill various application requirements. Meanwhile, bigger air flow is available by tailor-made as customer special requirement. PANEL STRUCTURE DESIGN Panel is made of powder coated double steel (outer and inner both) with high pressure polyurethane foam fitting in between, thus offering a rigid and robust panel. Frame is made of aluminum alloy which is fastened to the panel, as a result, the unit is strong and lightweight. LOW AIR LEAKAGE Thanks to the high pressure PU foam fitting, and special design insulation method to guarantee no low air leakage, to best minimize loss of energy. LOW NOISE Thanks to the rigidly bolted panel, dynamically and statically balanced fan assembly with spring isolator and closely integrated section, maximum to reduce the vibration and noise. COIL DESIGN All coils are designed by professional computer selection software, proved through the lab testing and real life application.
