Temperature data acquisition unit

temperature data acquisition unit
temperature data acquisition unit
temperature data acquisition unit
Add to favorites
Compare this product


Characteristics

Measured physical value
temperature

Description

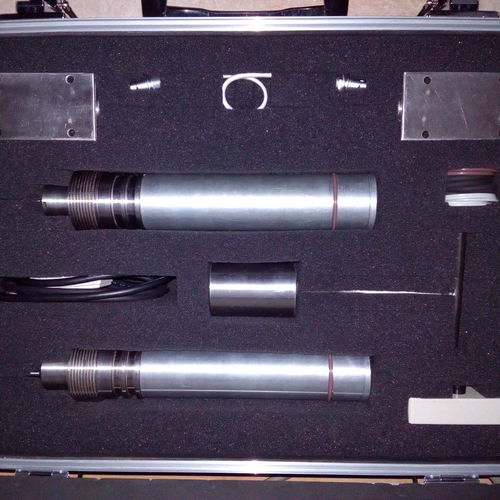

Downhole Data Acquisition Instrument Product features Reasonable structure Stable performance Easy maintenance Energy-efficiency Product details Downhole Data Acquisition Instrument is used to monitor the temperature and pressure .It can display and store all the parameters and transmit the data to the controm center by network or wireless network. It can alarm and interlocked protection when abnormality occurs. Technical indicators: Measuring parameters: pressure、 temperature and tank temperature of instrument Pressure measuring range: 0 MPa to 70 MPa Pressure measurement error: ≤±0.25% Resolution of pressure: 0.01 MPa Temperature measurement range: 0 ℃ ~ 200 ℃ The temperature measurement error: ≤±0.5% Resolution of temperature: 0.1 ℃ Storage capacity: 32704 sets Sampling interval setting: 10 sections Sampling rate: 1s(min、h) ~ 59s(min、h) , can be set Communication interface: USB Power supply: 3.9 V high temperature lithium battery pack (150 ℃) Dimension: Ф 41mm× 250 mm
