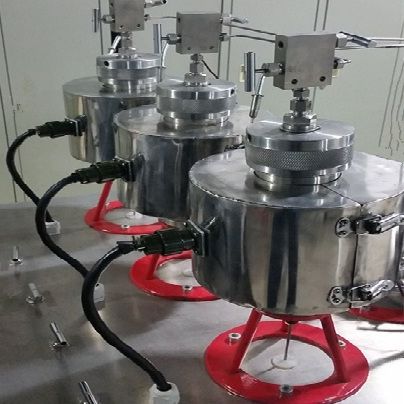

Microcosmic Oil Displacement Simulation Device
The device is used to research the increasing rate of microbial flooding technology under high temperature and high pressure. The device adopts CCD to collect the experiment data and treat it.
The device includes fluid filling system、clamp system、circling pressure system、return pressure system、data collecting system、image pick-up and treat system、temperature control system and so on.
Temperature range: 0-150℃
Pressure range: 15MPa
Flow range of driving pump: 0.01-10.0ml/min
Industrial camera: 5 mega-pixel，2/3" CCD
Modular design, easy to installation and maintenance
Pressure is automatic tracking
Driving pump is controlled by the computer accurately.
Experiment data is detecting、controlling、storing and printing real-timely
The process of displacement is viewable.
